ARKAN-10 GCS
Ground Control Station
DESCRIPTION
ARKAN-10 GCS consolidates drone control, live video reception and mission preparation in a deployable field station. Its adjustable mast, directional antennas, integrated display and control equipment provide a unified operating interface.
Key Parameters
MAXIMUM WEIGHT
34 kgMAST HEIGHT
1.6-8 mDEPLOYMENT AND PREPARATION TIME
15 minutesMAXIMUM RANGE
Up to 30 km, location-dependentNOMINAL SUPPLY VOLTAGE
16-25,2 vCONTROL AND TELEMETRY INTERFACES
740-1010 mhz; optional 2.2-2.7 ghzVIDEO RECEPTION FREQUENCY RANGE
4990-6100 mhzDISPLAY
10-19-inch led, 1366 × 768key capabilities
01

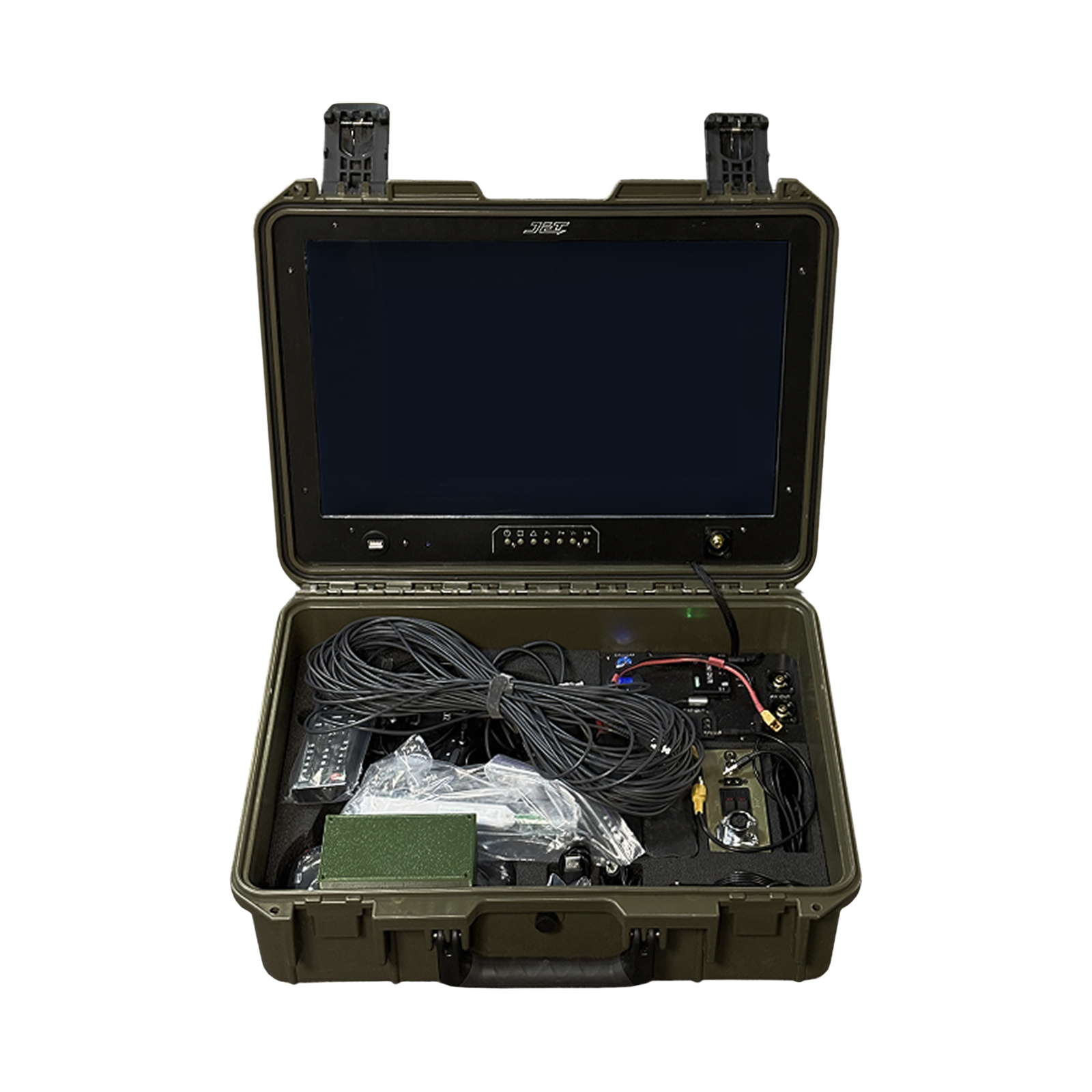

Case with integrated monitor and control panel02

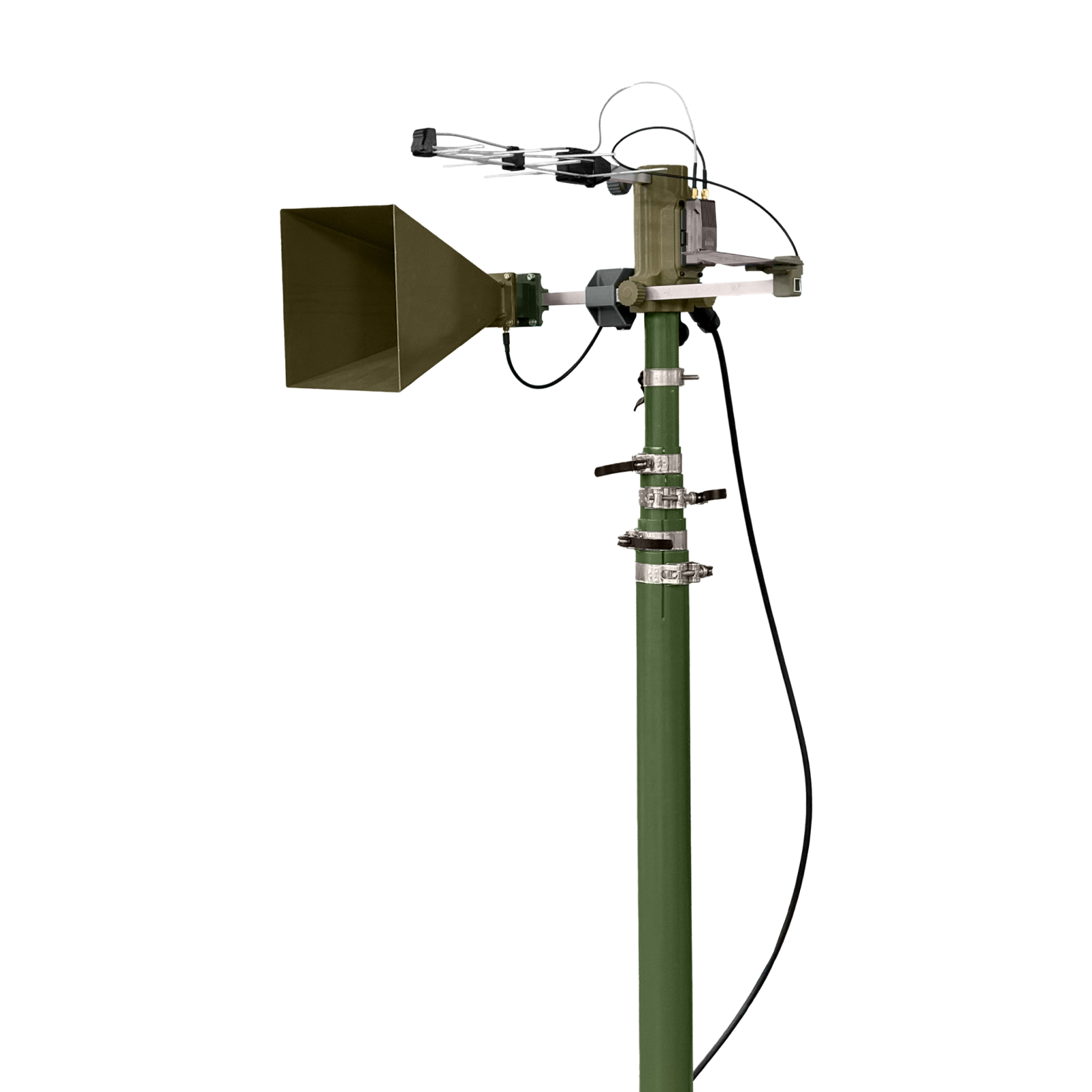

Adjustable telescopic mast03
Radiomaster tx12 controller04
Video goggles05
Directional and log-periodic antenna set06
Shielded coaxial antenna cables
