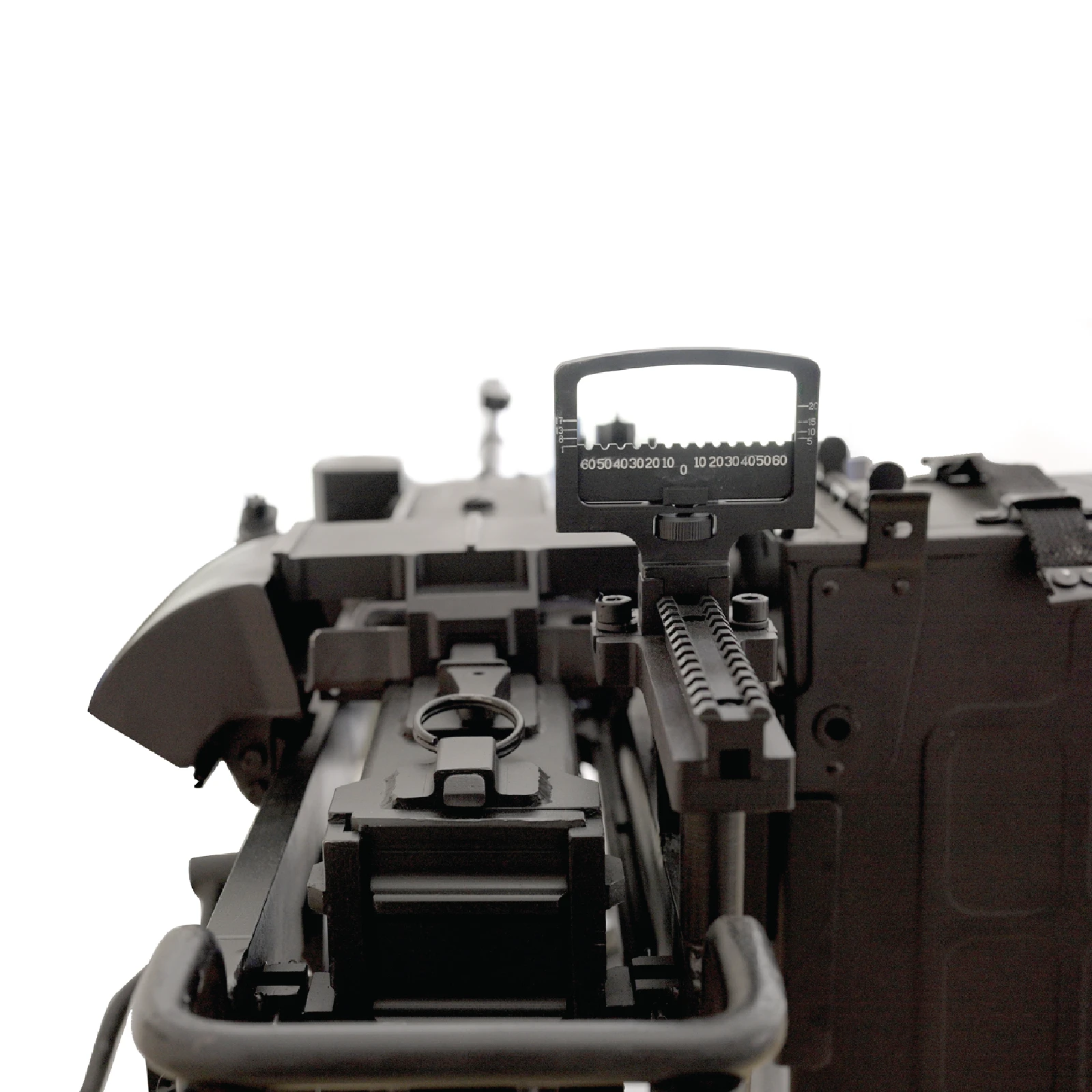

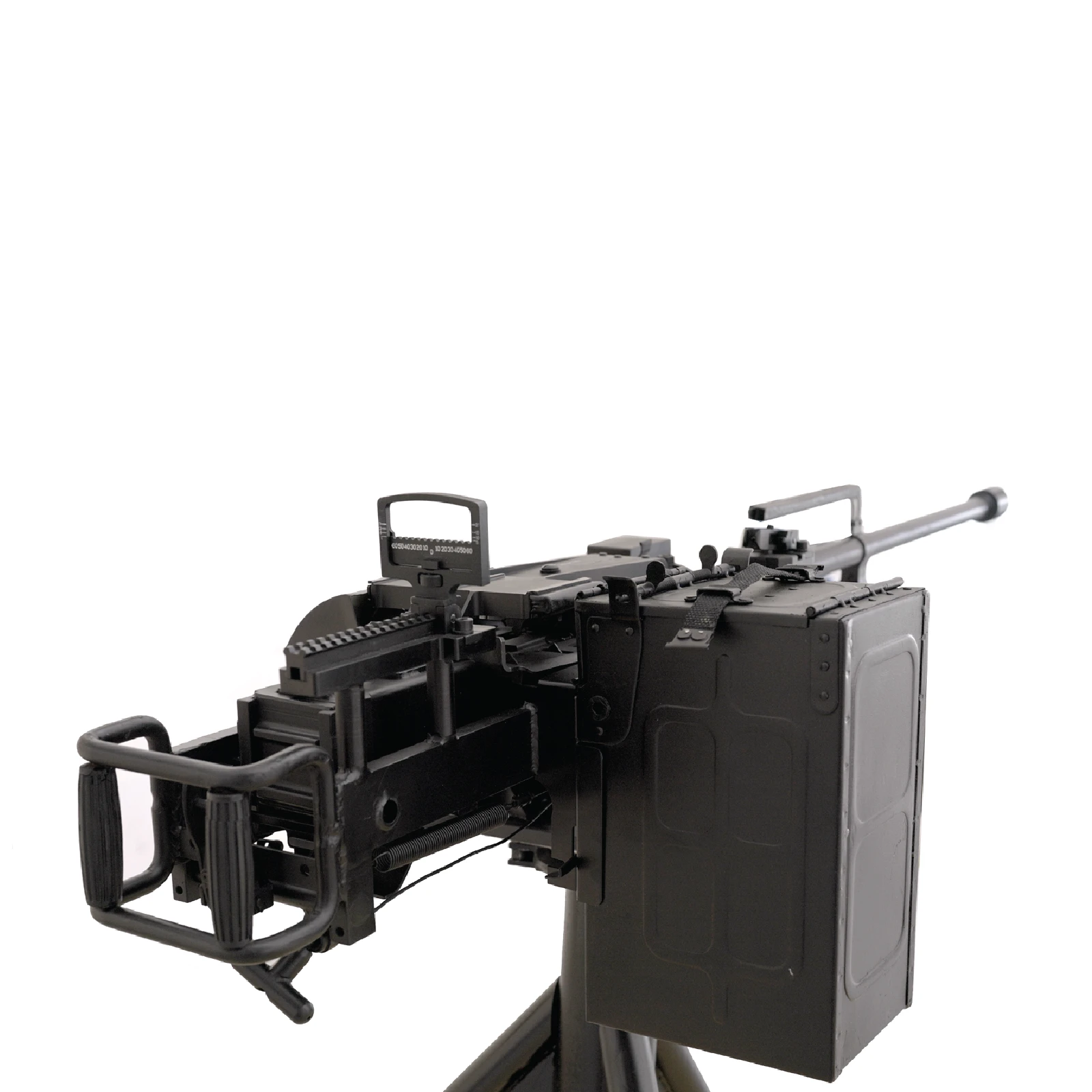

AZ-14.5
14.5×114 mm Heavy Machine Gun
DESCRIPTION
The AZ-14.5 is a heavy machine gun chambered in 14.5×114 mm, designed for engaging aerial targets, lightly armored vehicles, weapon systems, and light fortifications. It features short recoil operation and can be mounted on various platforms for static or mobile defense roles.
Key Parameters
CALIBER
14.5×114 mmOPERATION
Short recoilEFFECTIVE RANGE (MECHANICAL SIGHT)
2000 m (ground targets)RATE OF FIRE
550±50 rounds/minMUZZLE VELOCITY (B-32)
980±25 m/sFEED SYSTEM
50-round beltWEIGHT OF EMPTY AMMUNITION BOX
3.9±0.3 kgSYSTEM LIFE
6000 roundsWEAPON ONLY (EMPTY)
31 kgWITH MOUNT (NO BELT OR BOX)
71 kgWITH MOUNT AND LOADED AMMUNITION BOX
102 kgWeight (Machine Gun & Mount)
WEAPON ONLY (EMPTY)
31 kgWITH MOUNT (NO BELT OR BOX)
71 kgWITH MOUNT AND LOADED AMMUNITION BOX
102 kgOverall Dimensions (with mount, 0° elevation)
LENGTH
2000 mmWIDTH
750 mmHEIGHT
630 mm
