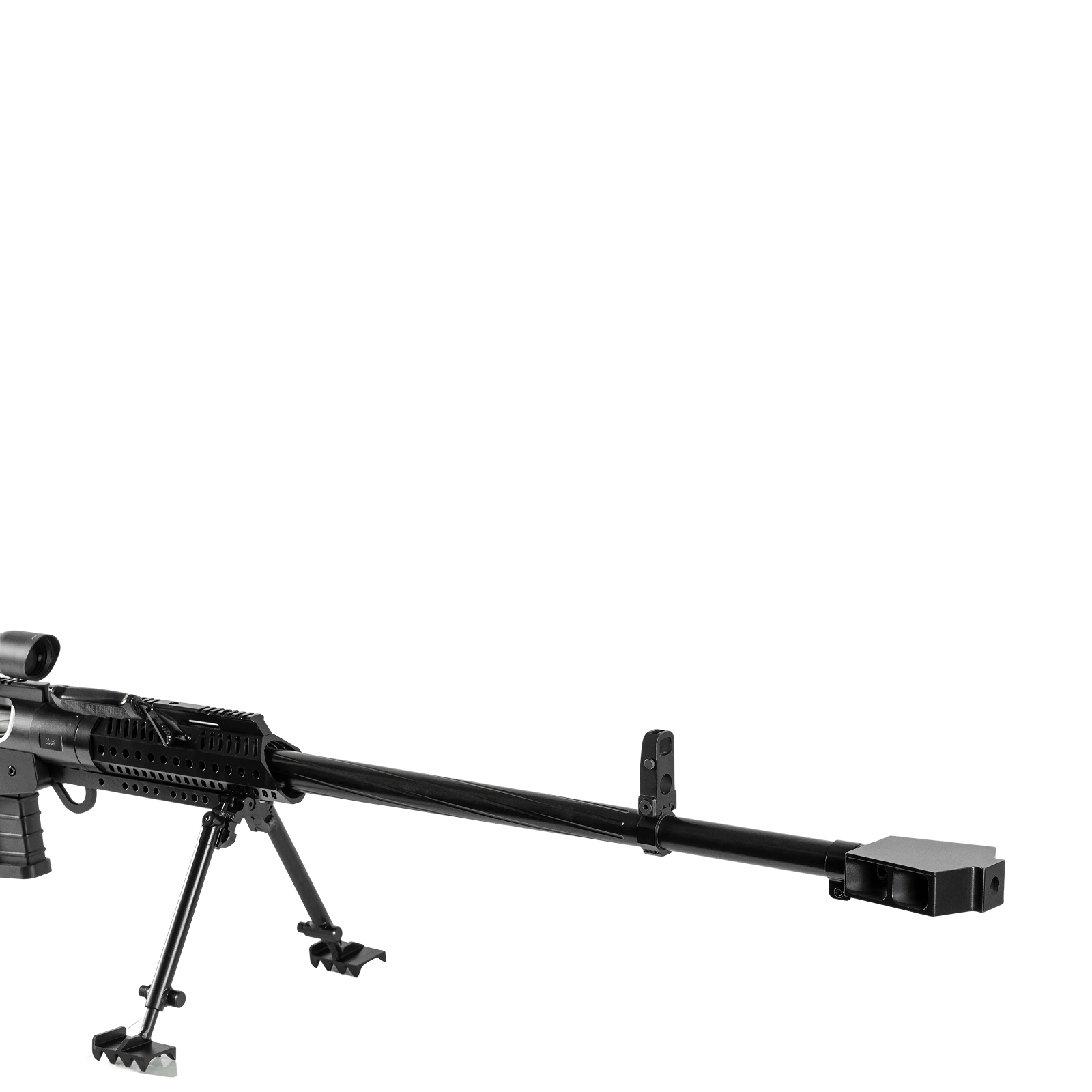

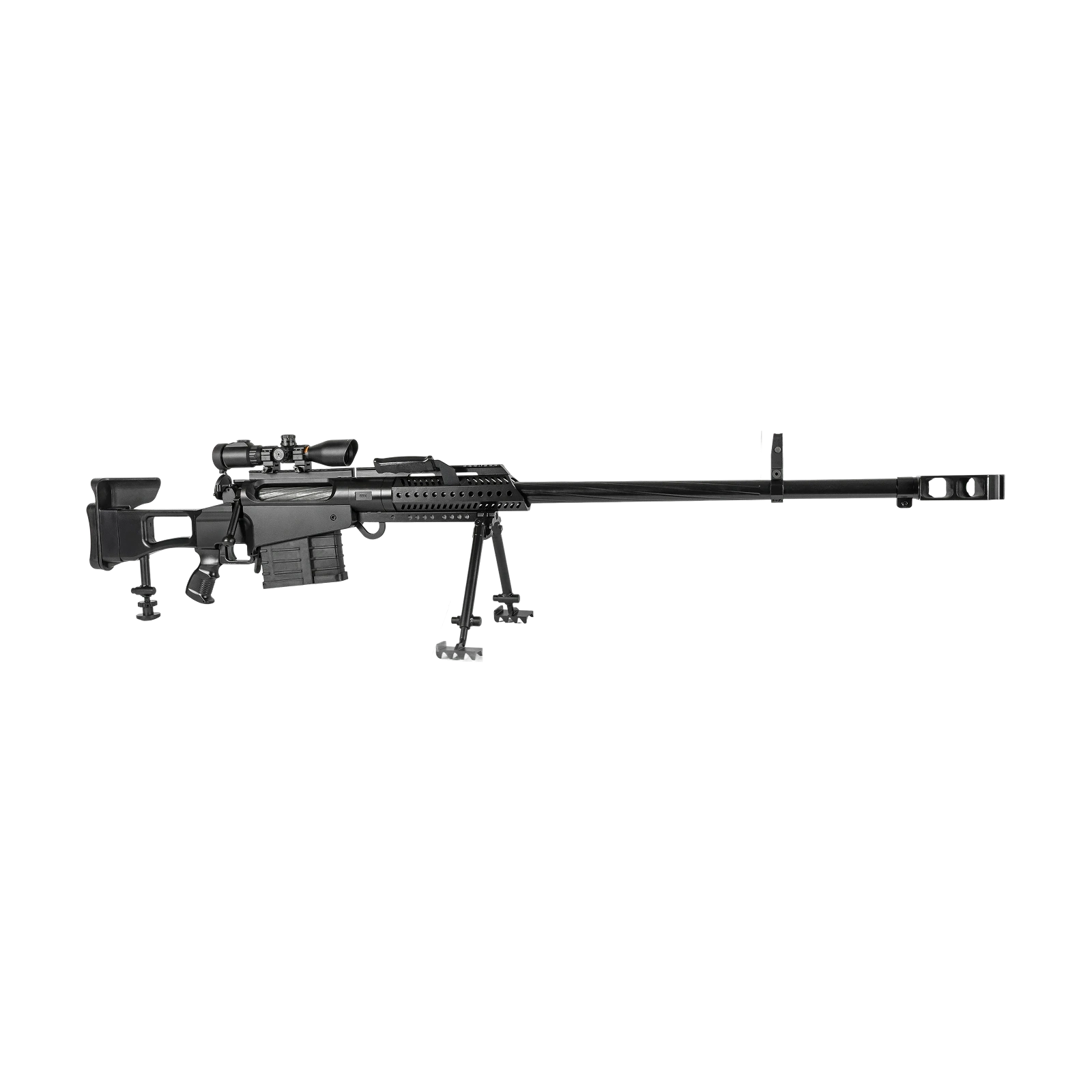

NST-14.5
14.5×114 mm anti-materiel rifle
DESCRIPTION
NST-14.5 is a precision, semi-automatic anti-materiel rifle chambered in 14.5×114 mm, designed to engage armored vehicles, infrastructure targets, and personnel at long range. The system incorporates an advanced recoil management mechanism to reduce shooter fatigue and allows for rapid follow-up shots. It is optimized for operation in extreme environments and can be disassembled into two parts for man-portable transport.
Key Parameters
CALIBER
14.5 mmCARTRIDGE
14.5×114 mmOPERATION
Semi-automatic, magazine-fedMAGAZINE CAPACITY
4 roundsMUZZLE VELOCITY
950±40 m/sFIRING RATE
8–10 rounds/minEFFECTIVE RANGE (WITH OPTICAL SIGHT)
1600 mEFFECTIVE RANGE (WITH MECHANICAL SIGHT)
800 mOVERALL LENGTH
1900 mmWEIGHT
21 kg (±5%)Mountings
01
Adjustable front bipod02
Adjustable rear monopodPortability
Dismountable into two packs for crew transport
Ammunition Types
01
Armour Piercing-Incendiary (API)02
Armour Piercing-Incendiary-Tracer (API-T)03
Incendiary04
High Explosive Incendiary (HEI)Environmental Tolerance
OPERATING TEMPERATURE
–50°C to +50°CRELATIVE HUMIDITY
93–97% at +25°C
Resistant to rain, snow, sand, and dust
