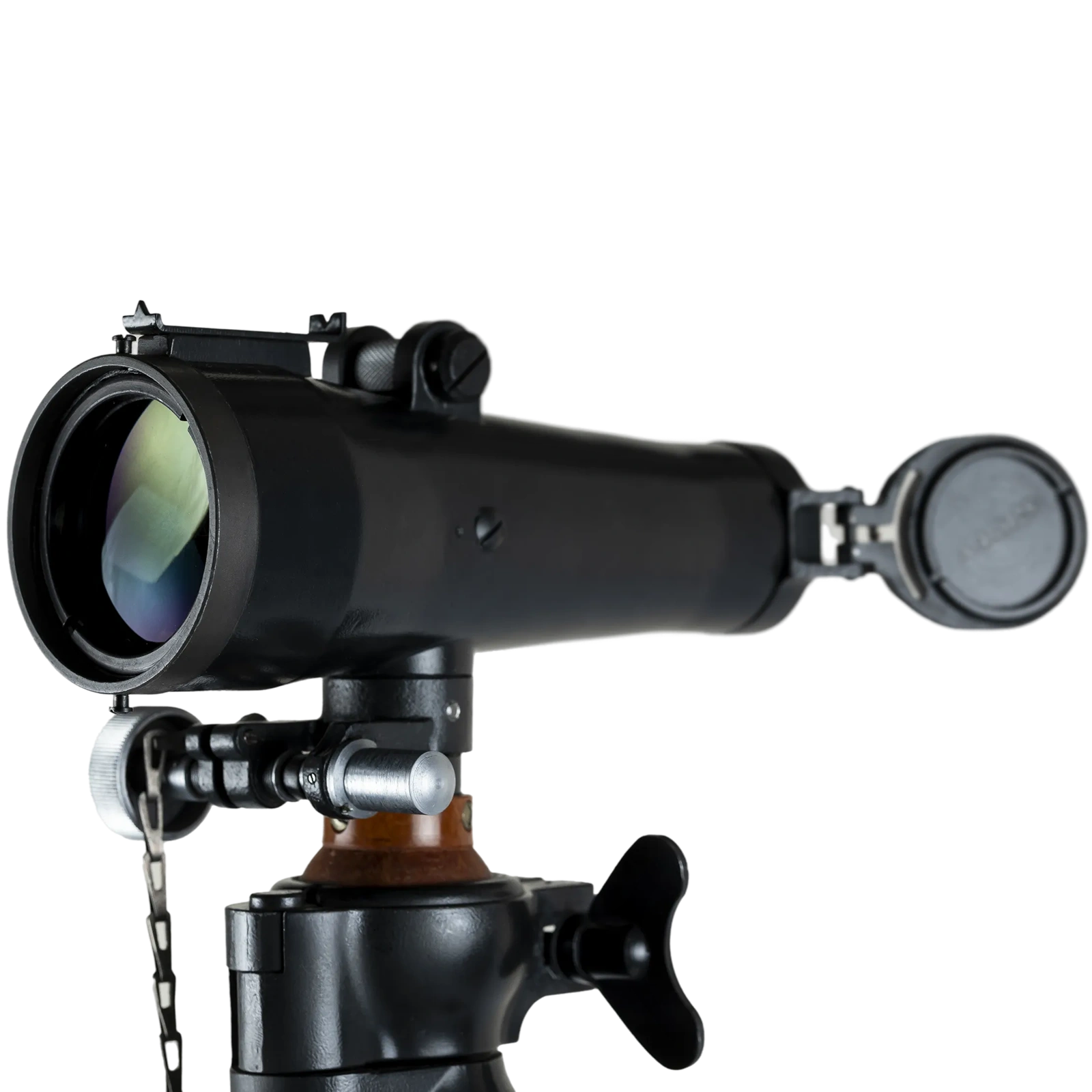

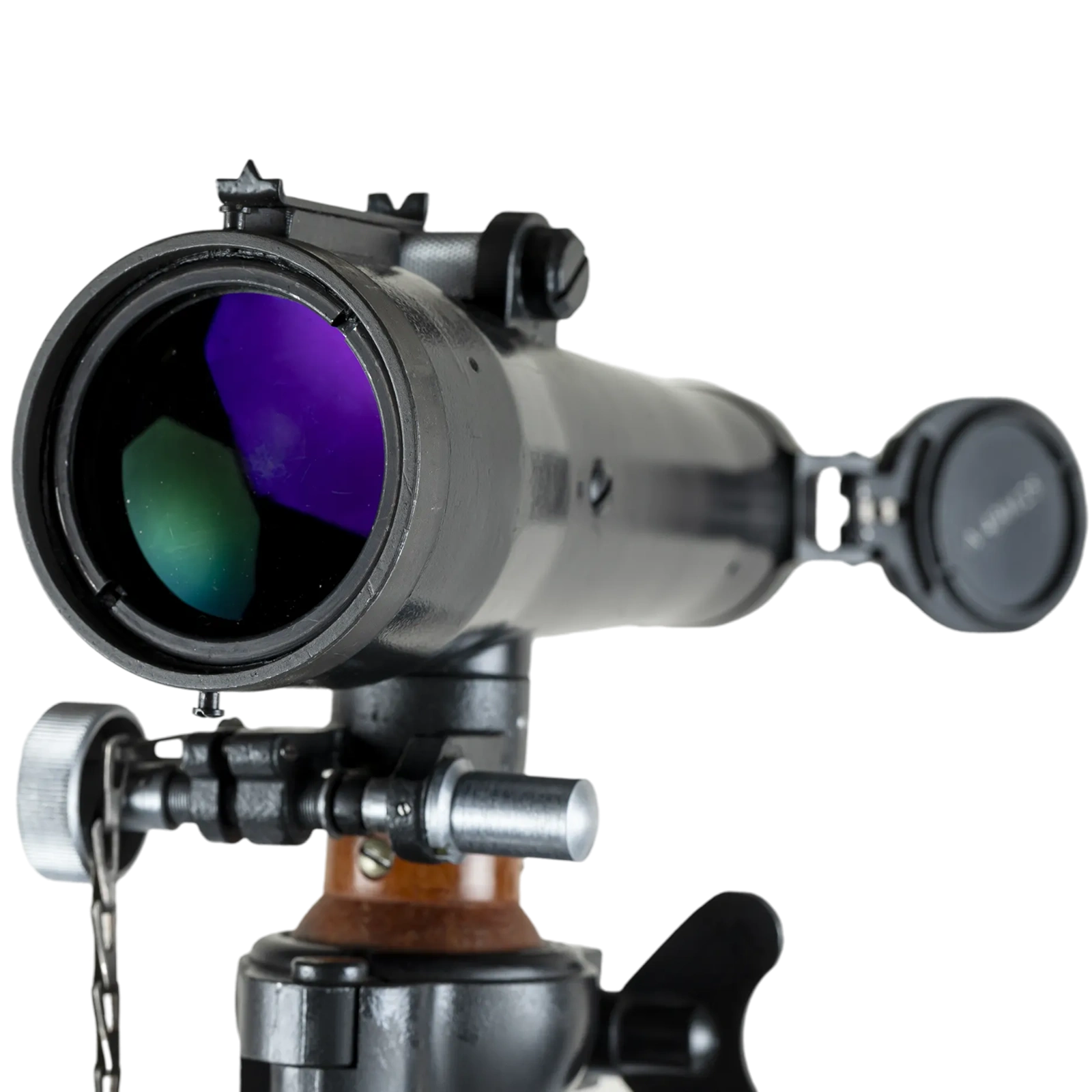

K1 gun collimator
Gun collimator
DESCRIPTION

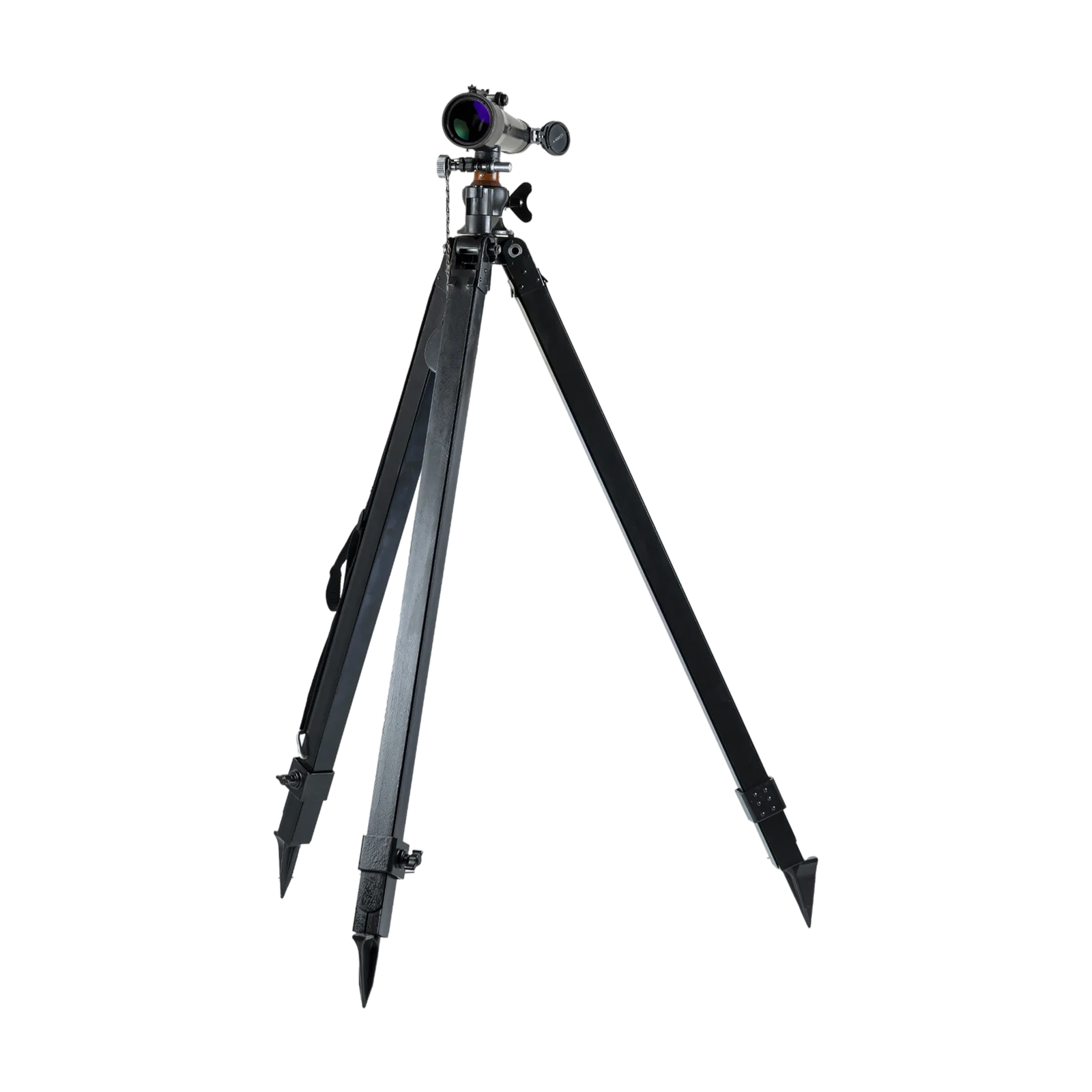

K1 collimator is designed for azimuth alignment of artillery systems when natural aiming points are unavailable due to limited visibility conditions such as night, fog, or battlefield smoke. It is compatible with MPM-44M (MON-44M) mortar sights and includes a tripod, illuminated reticle, and level vial for precise setup. The system ensures accurate laying of the gun line in all weather conditions.
Key Parameters
FIELD OF VIEW
≥12°ENTRANCE PUPIL DIAMETER
≥48 mmOPTIMAL OPERATING DISTANCE (FROM PANORAMIC TELESCOPE)
6–10 mNUMBER OF HORIZONTAL RETICLE MARKS
(76)RETICLE SCALE VALUE
2.2 mils (7.8")RETICLE INCLINATION ANGLE
≤20'RETICLE ECCENTRICITY
≤15°BRIGHTNESS LEVELS
up to 10ANGULAR DEVIATION (COLLIMATOR TO GUN)
≤45°PARALLAX
≤0.2 mmPOWER SUPPLY
3 V (CR1/3N battery)OPERATING TEMPERATURE
–50°C to +50°COVERALL DIMENSIONS
180×135×85 mmCOLLIMATOR WEIGHT
≤1.2 kgCASE WEIGHT
≤1.9 kgTRIPOD WEIGHT
≤3.6 kgCompatible System
MPM-44M (MON-44M) MORTAR SIG
