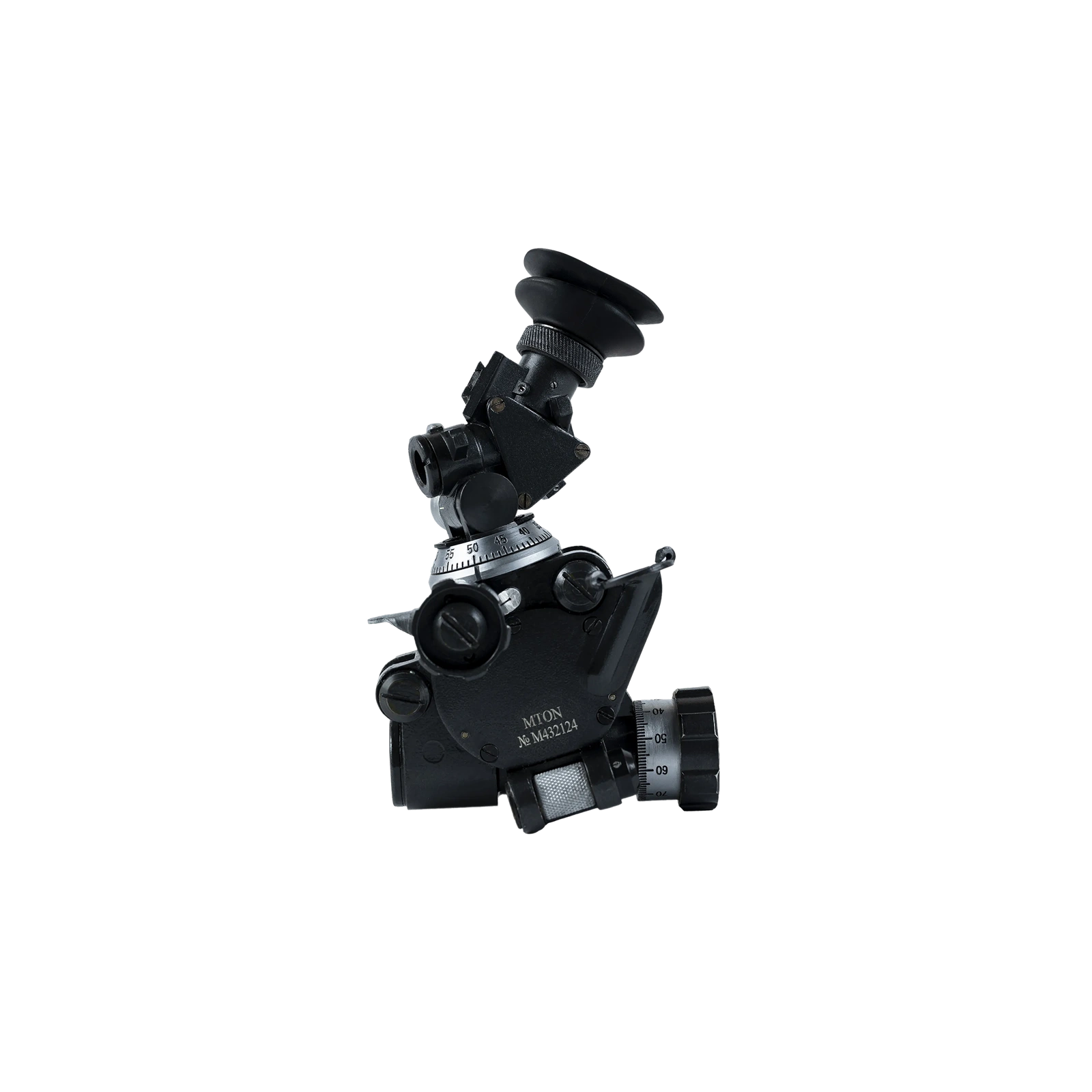

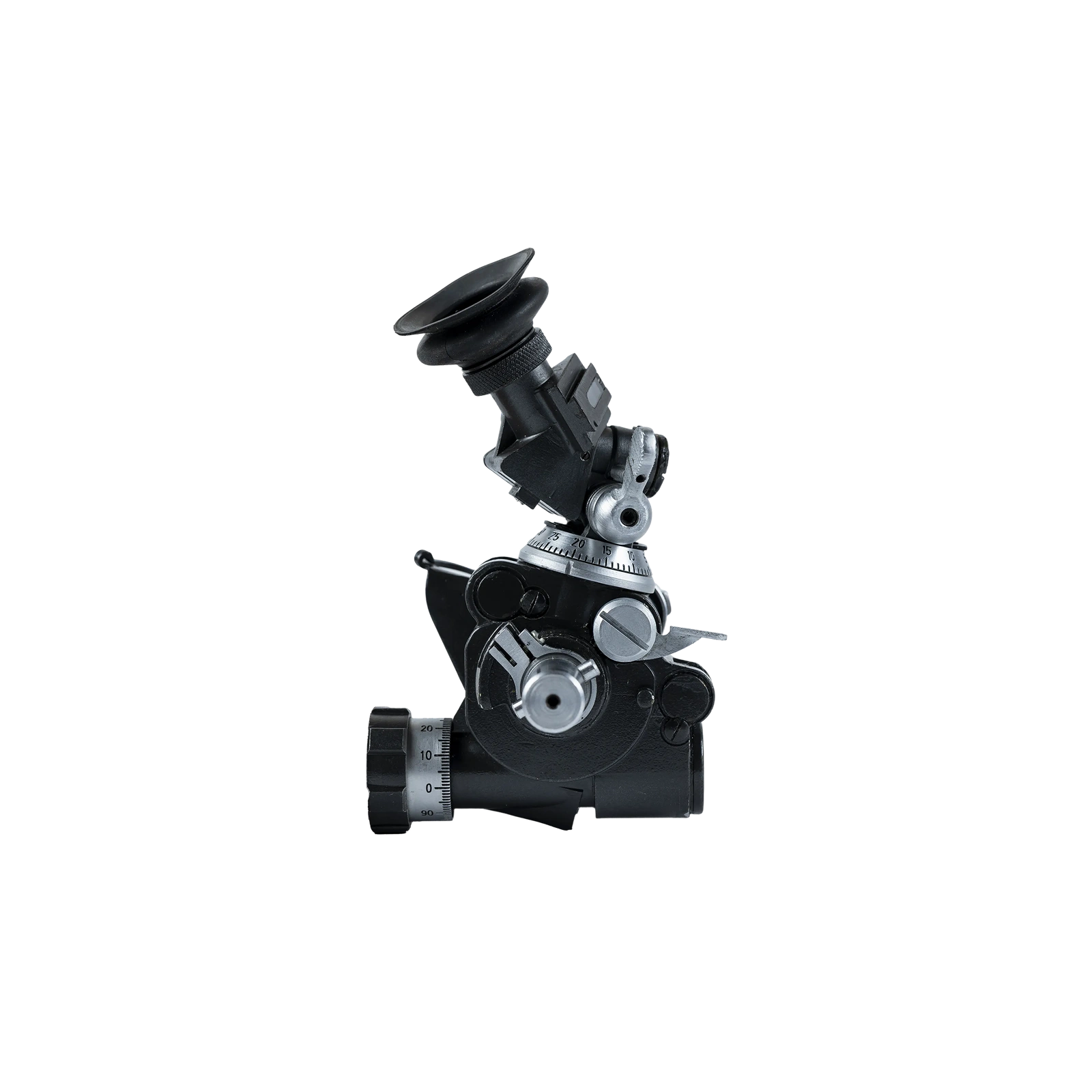

MTON
Standard mortar sight
DESCRIPTION
MTON is a standard optical sight designed for indirect fire alignment of mortars. It features both deflection and elevation mechanisms with coarse and fine adjustment scales. Equipped with reticle and scale illumination, the sight ensures accurate targeting in low-light conditions. When natural aiming points are absent, MTON can be used in conjunction with the K1 collimator for precise gun laying.
Key Parameters
MAGNIFICATION
2.55×FIELD OF VIEW
(9°)OPTICAL RESOLUTION
25 arcsecondsEXIT PUPIL DIAMETER
3.9 mmEYE RELIEF
20 mmSCALE GRADUATION
1/6000 milsELEVATION ANGLE RANGE
0–00 to 10–00 milsHORIZONTAL ANGLE RANGE
0–00 to 60–00 milsMechanical scale graduations
COARSE
1–00 milsFINE
0–01 milsWEIGHT (SIGHT ONLY)
0.9 kgWEIGHT (PACKED)
1.95 kgCompatibility
USABLE WITH K1 GUN COLLIMATOR IN LOW VISIBILITY CONDITIONS
