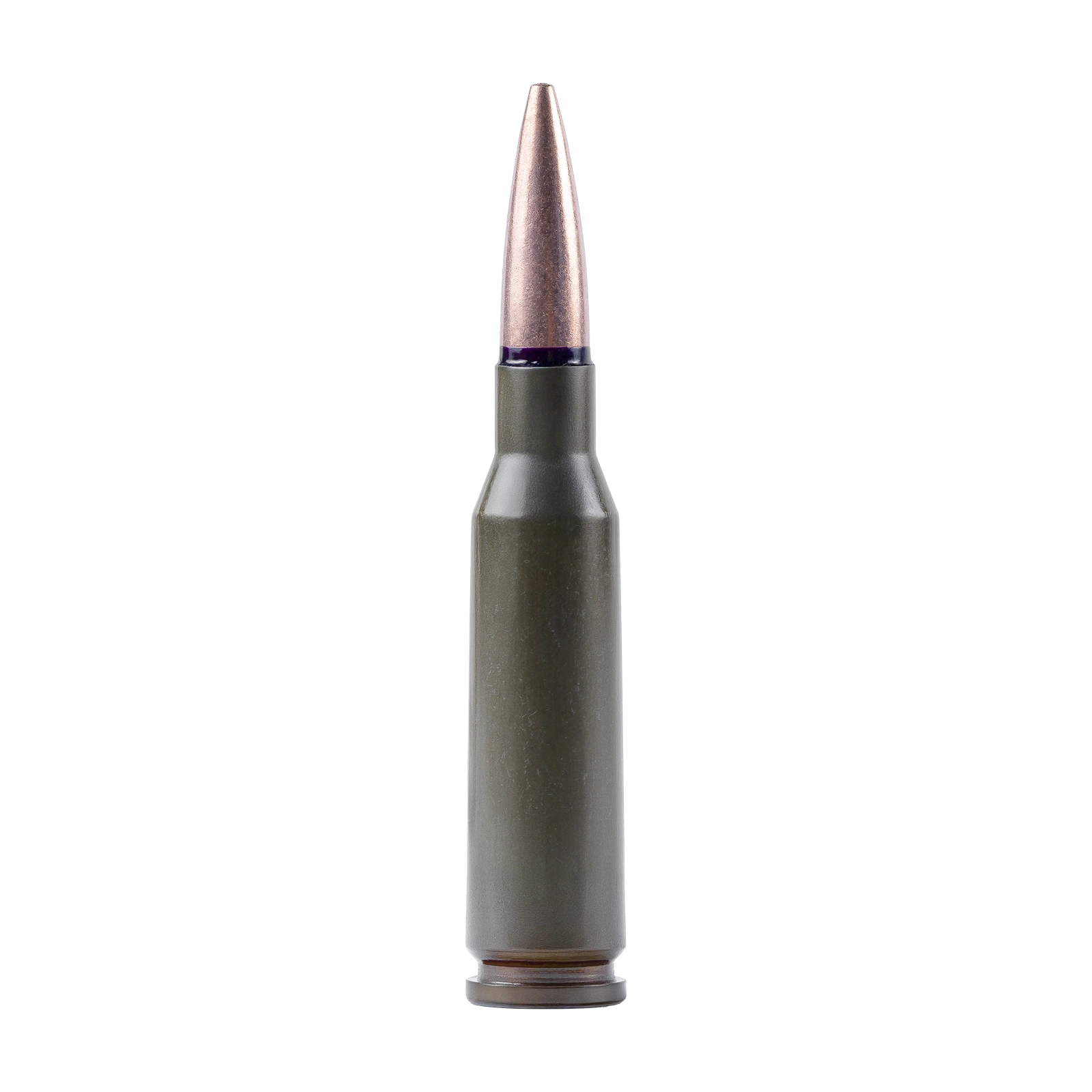

5.45×39 mm cartridge
Enhanced penetration bullet (7N10)
DESCRIPTION
5.45 mm cartridge with 7N10 bullet is designed to engage unshielded targets at up to 1,200 m, flak vest-clad manpower at up to 100 m, personnel behind lightly armored barriers at up to 1,000 m, and aerial targets at up to 900 m. It is compatible with all weapons chambered for the 5.45 mm cartridge. The bullet is unpainted.
Key Parameters
CALIBER
5.45x39 mmCARTRIDGE WEIGHT
10.19 – 11.08 gBULLET WEIGHT
3.49 – 3.63 gCARTRIDGE CASE WEIGHT
5.1 – 5.75 gPOWDER CHARGE WEIGHT
1.44 gCARTRIDGE LENGTH
57⁻⁰.⁸ mmMUZZLE VELOCITY
870 – 890 m/sMAX GAS PRESSURE
≤294.2 (3000) MPaACCURACY (R₅₀), CM AT 100 M
≤3.5 cmPENETRATION RANGE
16 mm St3 – 100 mCASE MATERIAL
SteelGRADE POWDER
SSNf-30/3.69 (SB-410)
