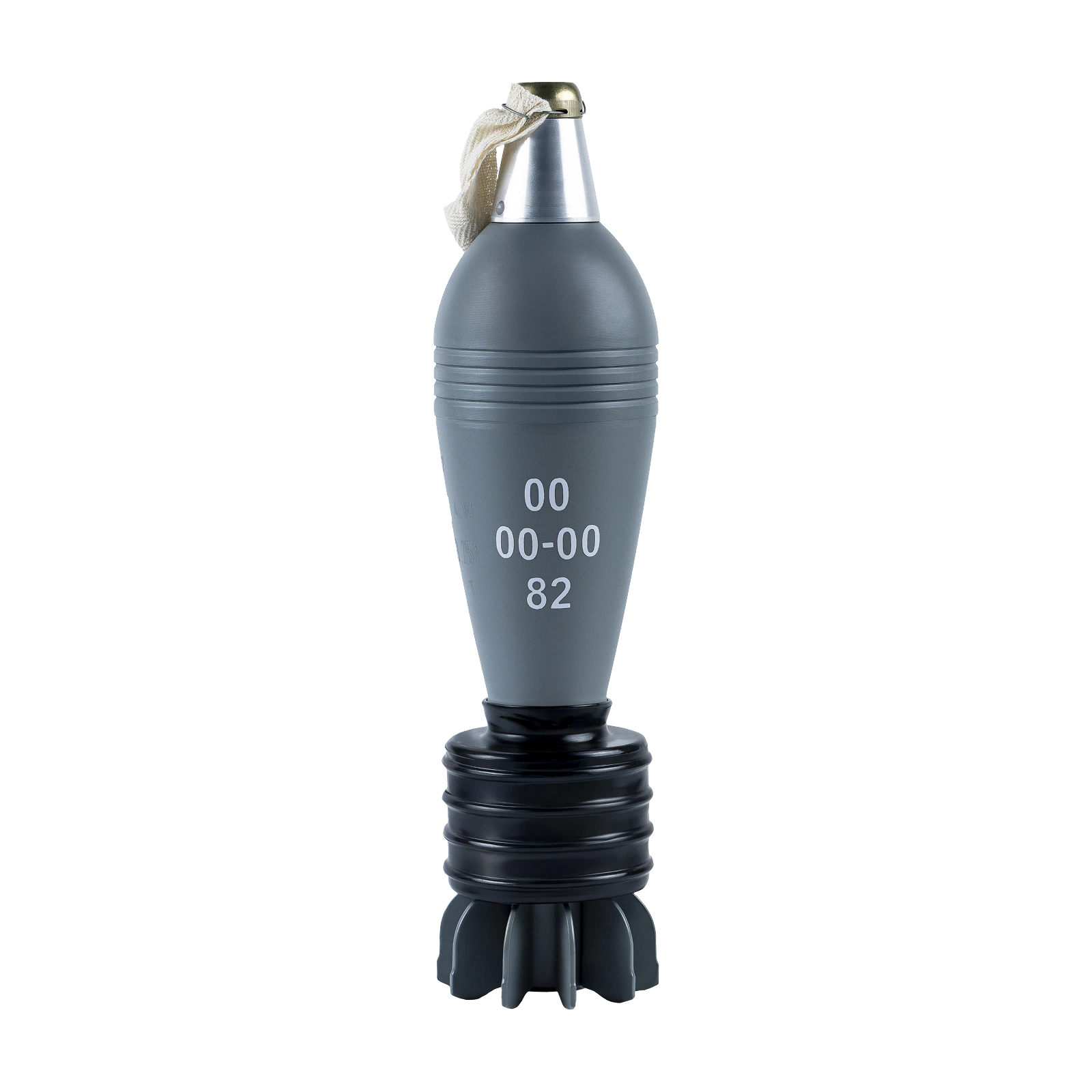

81 mm / 82 mm mortar bomb
High explosive
DESCRIPTION
81 mm / 82 mm High Explosive Mortar Bomb is designed to defeat enemy personnel, shelters, and lightly armored targets. It is compatible with standard 81 mm and 82 mm smooth-bore mortars. The bomb delivers effective fragmentation and is safe to handle, transport, and operate in all environmental conditions.
Key Parameters
CALIBER
81 mm / 82 mmMAXIMUM RANGE (WITH INCREMENT)
3000 mMAXIMUM RANGE (LONG RANGE)
4500 mOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
10 yearsBallistic Data
MUZZLE VELOCITY (MAX)
211 m/sMAXIMUM PRESSURE
450 kgf/cm²Technical Data
LENGTH OF MORTAR BOMB (FUZED)
332.5 mmWEIGHT OF MORTAR BOMB (FUZED)
3.2 ±0.09 kgWEIGHT OF EXPLOSIVE CHARGE
0.454 kgElements of Mortar Bomb
FUZE
M-6BODY
Cast ironEXPLOSIVE FILLING
TNT or TD-42NUMBER OF CHARGES
1 + 3 Increment or long range charges
