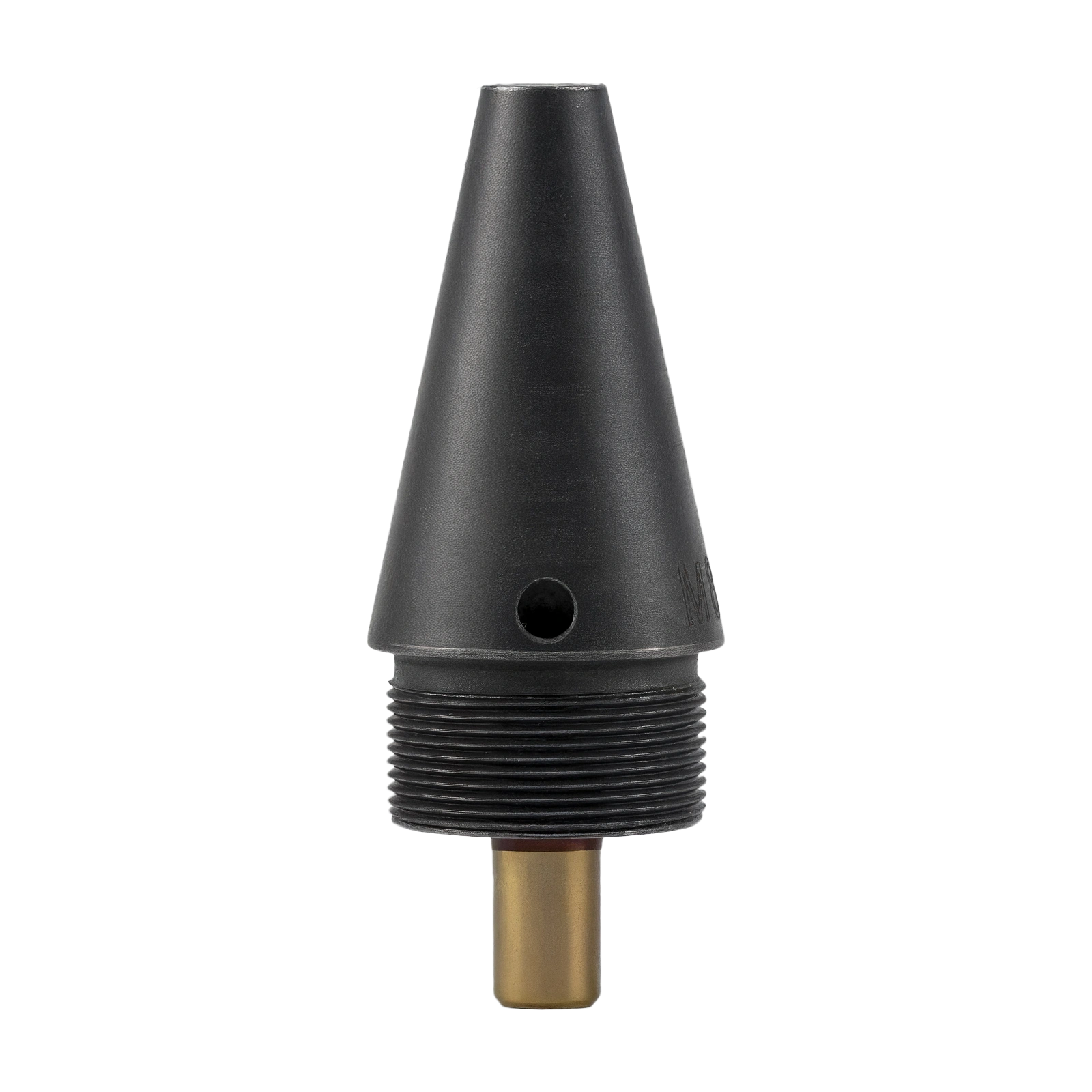

UT-M88 SP fuze
For 23×152 mm ammunition
DESCRIPTION
UT-M88 SP is a mechanical, nose, point-detonating fuze with delayed action and integrated self-destruction. It is used with 23x152 mm HEI and HEIT rounds fired from automatic guns 2A14, 2A14M, 2A7, and 2A7M, typically mounted on ZU-23-2 and ZSU-23-4 SHILKA air-defense systems. The fuze is safe in storage, handling, and operation, and provides reliable ammunition function in all weather conditions.
Key Parameters
ACTION
PD; DelayedARMING MECHANISM
Set-back and rotational forcesTEMPERATURE RANGE (FIRING)
-50°C to +50°CTEMPERATURE RANGE (STORAGE)
-50°C to +50°CSHELF LIFE
15 yearsTechnical Data
LENGTH OF FUZE (MAX)
52.6 mmVISIBLE LENGTH (MAX)
31.2 mmINTRUSION LENGTH (MAX)
21.4 mmEXTERNAL DIAMETER (MAX)
20.0 mmWEIGHT OF FUZE
37 gBOOSTER TYPE
A-30-TBOOSTER WEIGHT
1 gTHREAD SIZE
Spec. M17.96 × 0.75cl.2a
