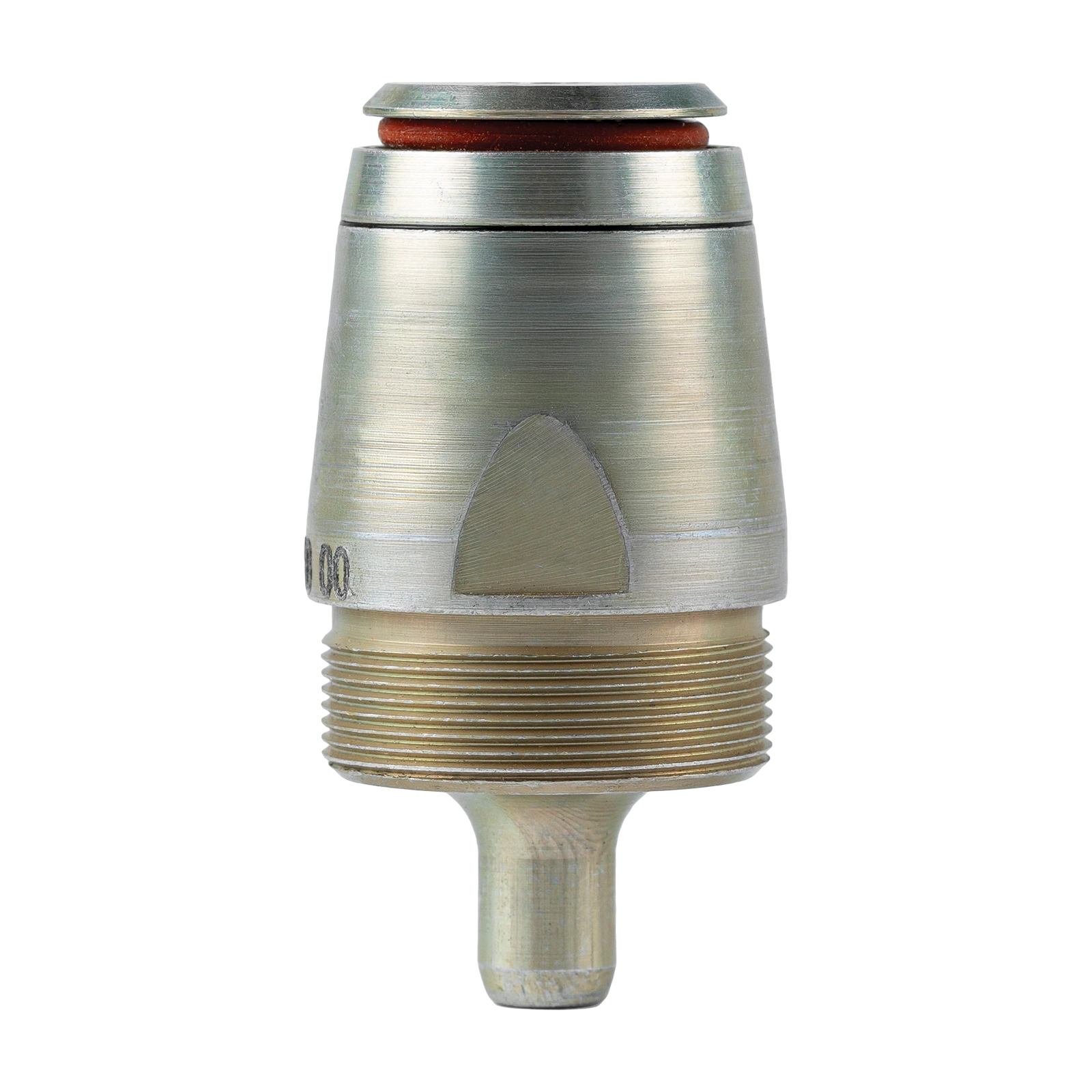

UT-M00 SP fuze
For 40 mm HE grenades VOG-25
DESCRIPTION
UT-M00 SP is a mechanical point-detonating fuze with super-quick action, used with 40 mm VOG-25 high-explosive grenades. It is armed by set-back and rotational forces and incorporates a self-destruct mechanism. The fuze ensures safe storage and effective operation across a wide range of environmental conditions.
Key Parameters
ACTION
PD; Super QuickARMING
Set-back and rotational forcesMUZZLE SAFETY DISTANCE
≥15 mTIME OF SELF-DESTRUCTION
12–20 sTEMPERATURE RANGE (FIRING)
-50°C to +50°CTEMPERATURE RANGE (STORAGE)
-50°C to +50°CSHELF LIFE
10.5 yearsTechnical Data
LENGTH OF FUZE (MAX)
58 mmVISIBLE LENGTH (MAX)
260 mmINTRUSION LENGTH (MAX)
32 mmEXTERNAL DIAMETER (MAX)
29.7 mmWEIGHT OF FUZE
60±1.5 gTYPE OF BOOSTER
A-30-TWEIGHT OF BOOSTER
1 gTHREAD SIZE
Spec. M28×1-6 g
