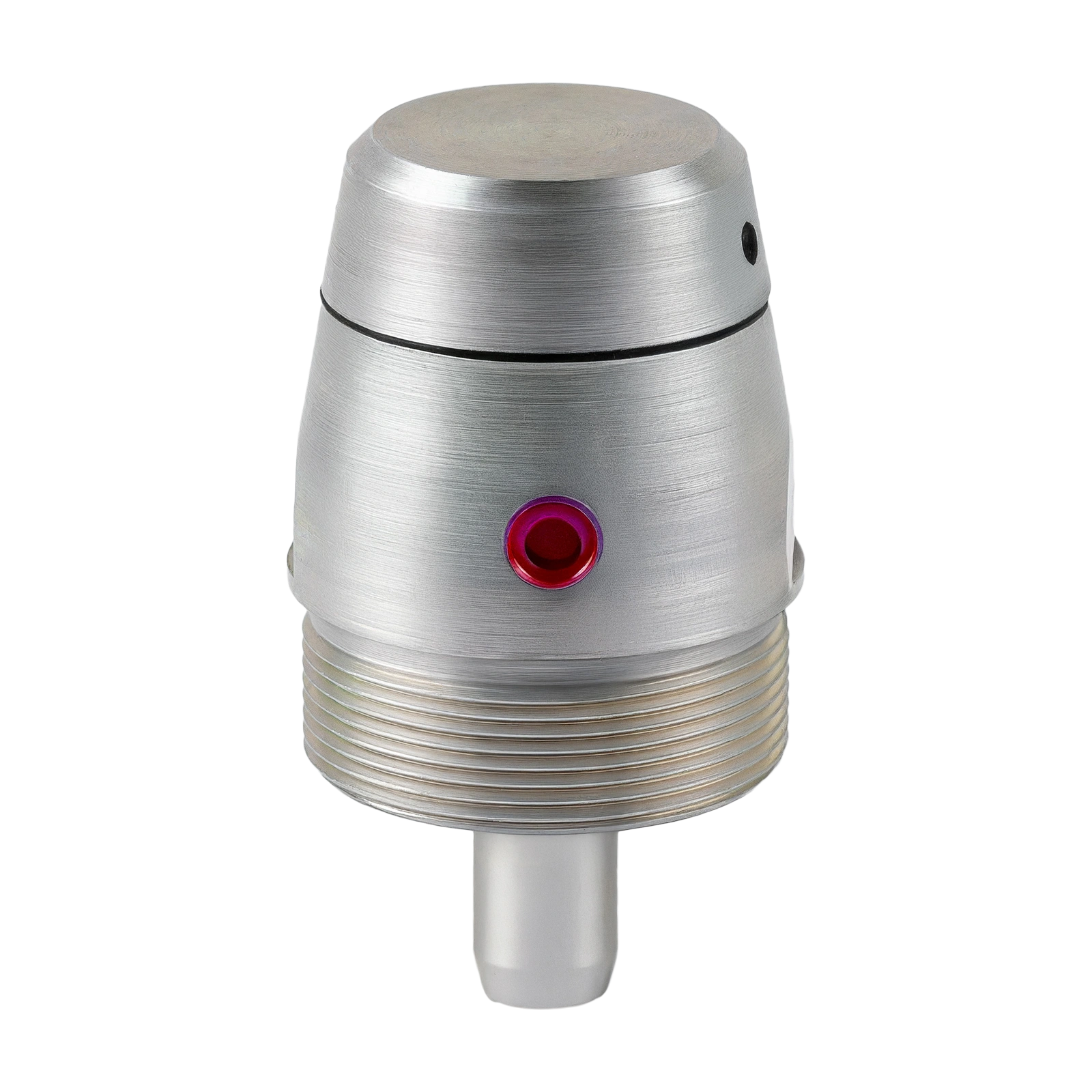

UT-M99 SP fuze
For 30 mm HE round VOG-17M
DESCRIPTION
UT-M99 SP is a point-detonating, super quick fuze used with 30 mm high-explosive rounds VOG-17M. It arms through set-back and rotational forces at a distance and includes a reliable self-destruct mechanism. The fuze provides safe storage and consistent performance in harsh environmental conditions.
Key Parameters
ACTION
PD; Super QuickARMING
Distant, by set-back and rotational forcesMUZZLE SAFETY DISTANCE
≥10 mTIME OF SELF-DESTRUCTION
28–36 sTEMPERATURE RANGE (FIRING)
-30°C to +50°CTEMPERATURE RANGE (STORAGE)
-30°C to +50°CSHELF LIFE
10.5 yearsTechnical Data
LENGTH OF FUZE (MAX)
53 mmVISIBLE LENGTH (MAX)
27 mmINTRUSION LENGTH (MAX)
26 mmEXTERNAL DIAMETER (MAX)
29.7 mmWEIGHT OF FUZE
48 ±0.5/2 gTYPE OF BOOSTER
A-30-TWEIGHT OF BOOSTER
1 gTHREAD SIZE
Spec. M28×1-6 g
