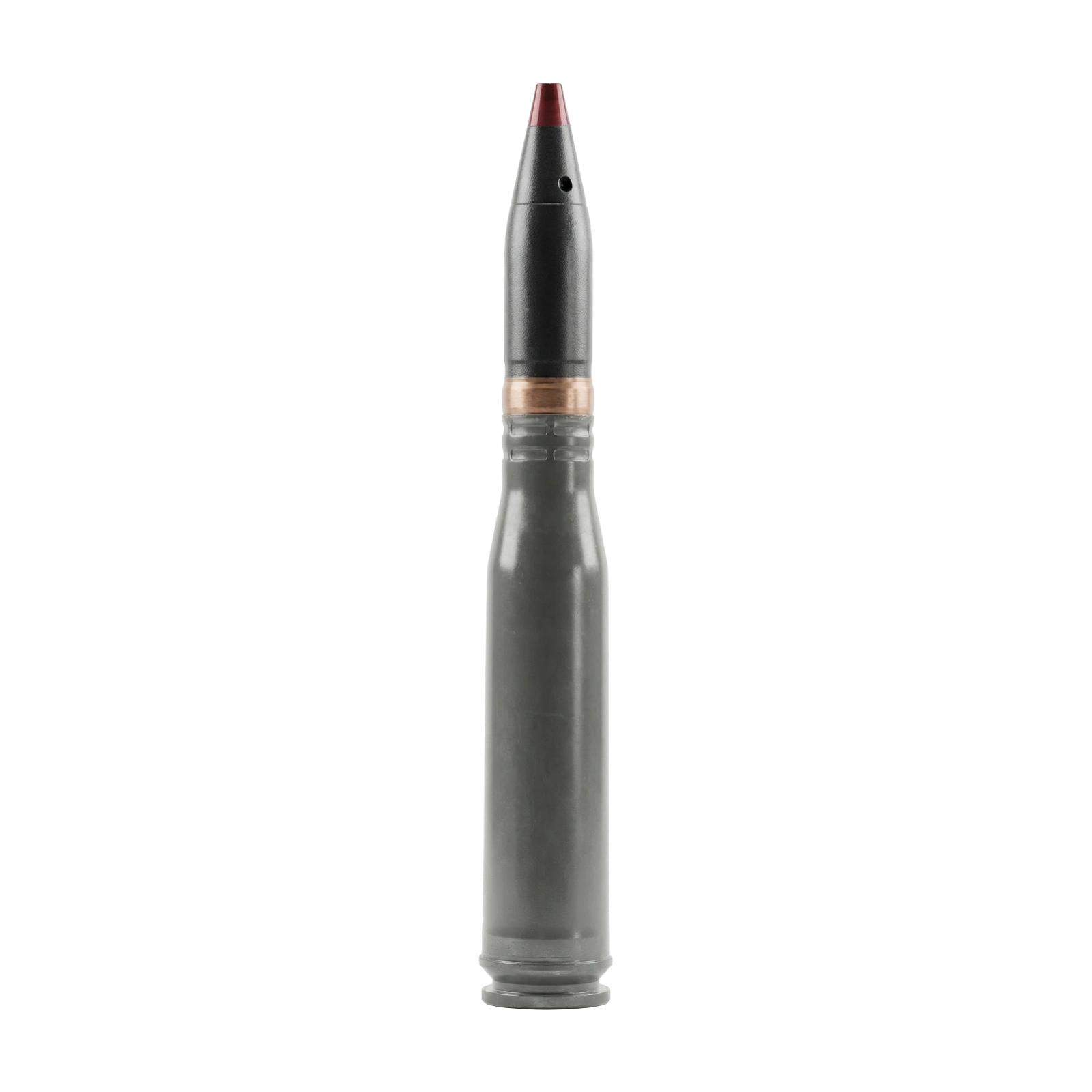

23×152 mm round
HEI projectile
DESCRIPTION
23x152 Round with Practice HEI (High Explosive Incendiary) Projectile is intended for drill firing and gun ballistic tests. The round has the same ballistic characteristics as the HEI rounds and is intended to replace them in target-practice firing. It is compatible with guns 2A14, 2A14M, 2A7, and 2A7M on ZU-23-2 and ZSU-23-4 SHILKA mounts. The ammunition ensures reliable performance in all weather conditions and is safe during storage and handling.
Key Parameters
Basic Characteristics
CALIBER
23x152 mmOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
15 years (10)Ballistic Data
MUZZLE VELOCITY
970 ±10 m/sPROBABLE DEVIATION
≤8 m/sAVERAGE PMAX
≤2925 kgf/cm²Elements Of Round
PROJECTILE
Practice HEIFUZE
DummyPROPELLANT
5/7 CflCARTRIDGE CASE
SteelPRIMER
KV №3Technical Data
LENGTH OF ROUND
234.28 – 237.12 mmWEIGHT OF ROUND
0.450 kgWEIGHT OF PROJECTILE
1.885 ±0.0035 kgLENGTH OF CARTRIDGE CASE
151.5⁻⁰.⁰⁵⁸ mmWEIGHT OF CARTRIDGE CASE
0.172 ±0.008 kgPROPELLANT CHARGE MASS
0.077 kg
