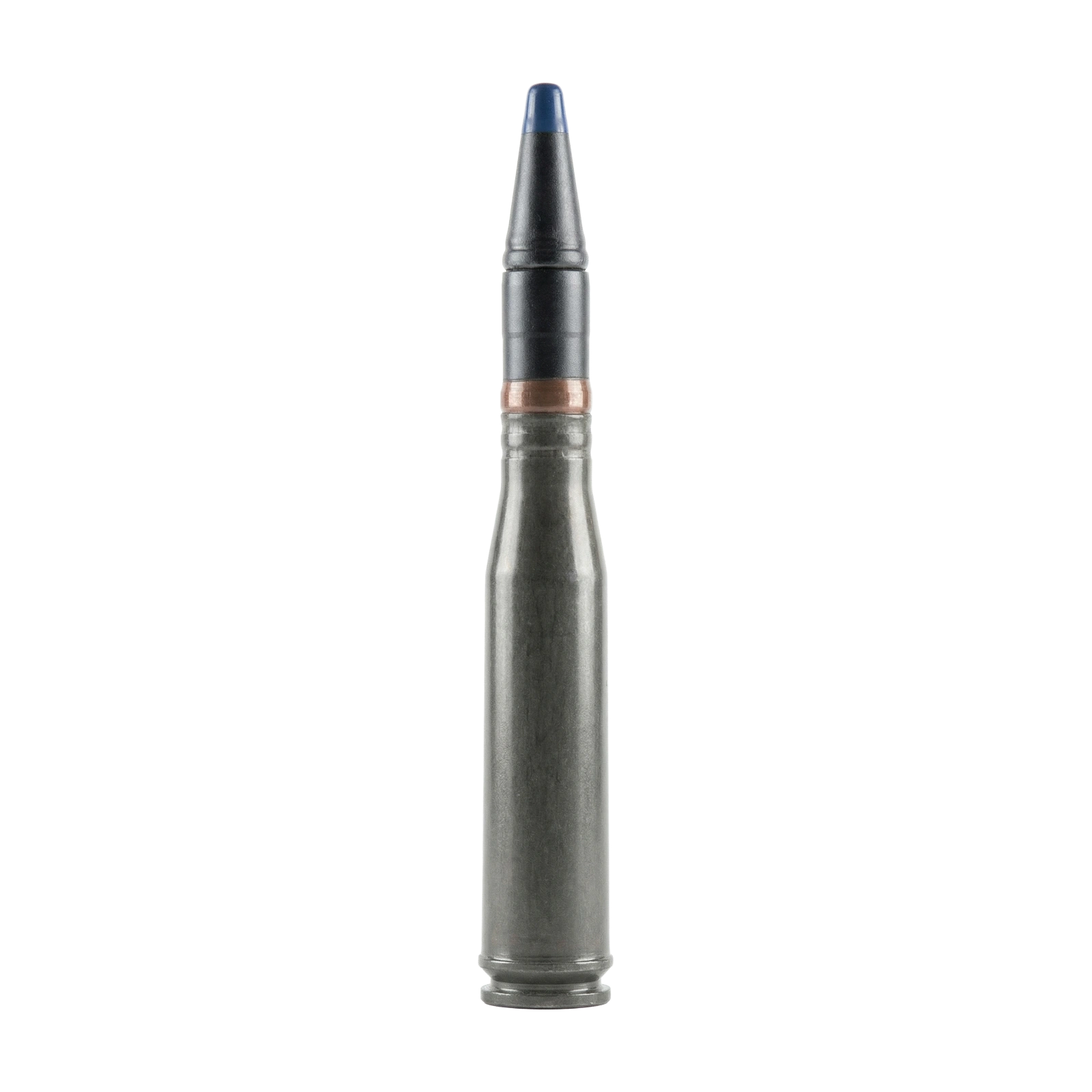

23×152 mm round
API-T projectile
DESCRIPTION
23x152 Round with Practice API-T (Armor Piercing Incendiary Tracer) Projectile is intended for drill firing and gun ballistic tests. The round has the same ballistic characteristics as the API-T rounds and is intended to replace them in target-practice firing. It is compatible with guns 2A14, 2A14M, 2A7, and 2A7M on ZU-23-2 and ZSU-23-4 SHILKA mounts. The ammunition ensures reliable performance in all weather conditions and is safe during storage and handling.
Key Parameters
Basic Characteristics
CALIBER
23x152 mmOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
10 yearsBallistic Data
MUZZLE VELOCITY
970 ±15 m/sPROBABLE DEVIATION
≤8 m/sAVERAGE PMAX
≤3200 kgf/cm²Elements Of Round
PROJECTILE
Practice API-TFUZE
DummyPROPELLANT
5/7 CflCARTRIDGE CASE
SteelPRIMER
KV №3Technical Data
LENGTH OF ROUND
234.36 – 237.16 mmWEIGHT OF ROUND
0.450 kgWEIGHT OF PROJECTILE
0,190 ±0.003 kgLENGTH OF CARTRIDGE CASE
151.5⁻⁰.⁰⁵⁸ mmWEIGHT OF CARTRIDGE CASE
0.172 ±0.008 kgPROPELLANT CHARGE MASS
0.077 kg
