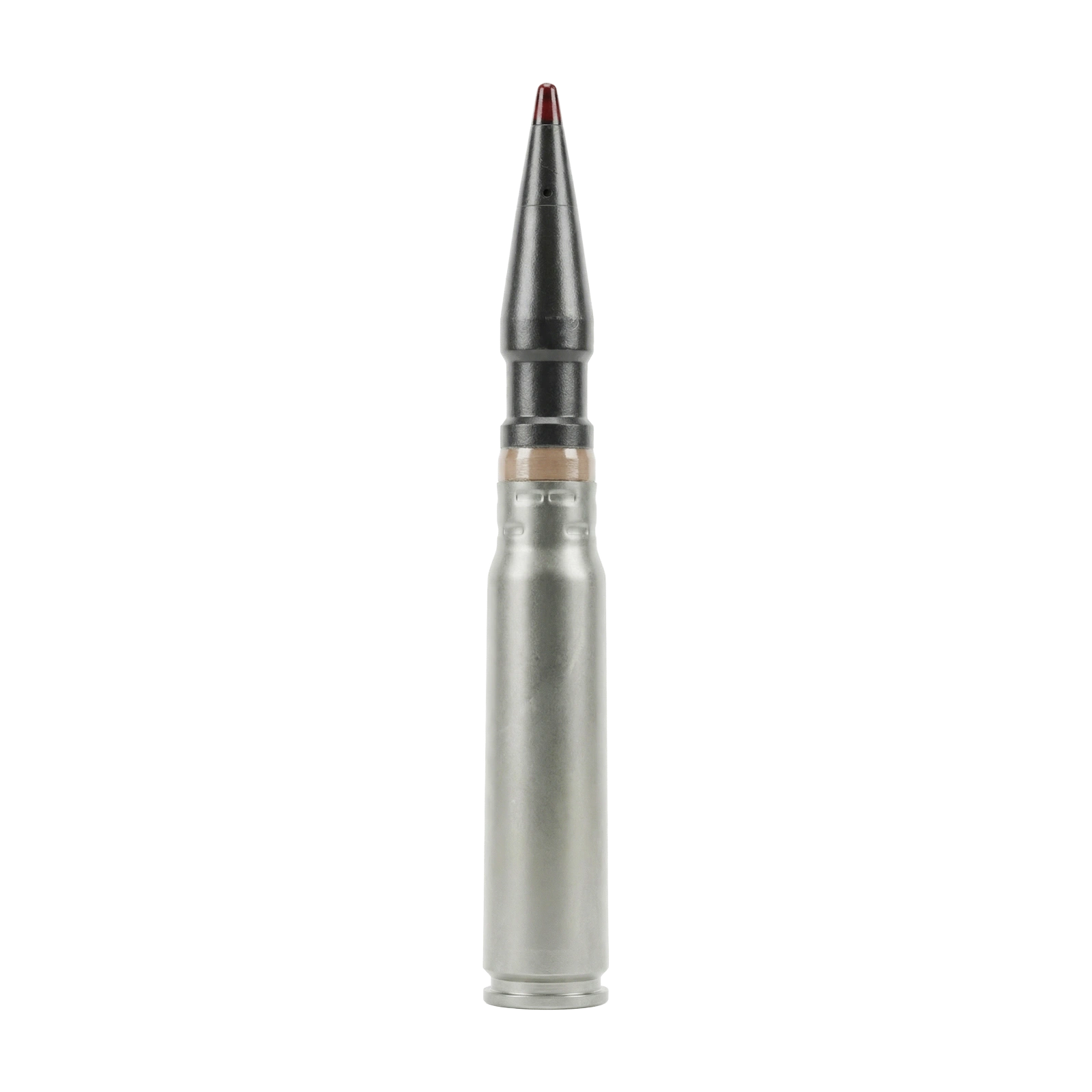

30×165 mm round
HE-T projectile
DESCRIPTION
30x165 Round with Practice HE-T (High Explosive Tracer) Projectile is intended for practice firing. The projectile is inert and contains no explosive. The ammunition is safe for transport, storage and handling, and ensures reliable performance of the gun systems in all weather conditions. It is used in automatic guns 2A42, 2A38, 2A72, and their modifications, installed on infantry fighting vehicles, reconnaissance vehicles, air-defense systems, and attack helicopters.
Key Parameters
Basic Characteristics
CALIBER
30x165 mmOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
15 yearsBallistic Data
MUZZLE VELOCITY
950 – 970 m/sPROBABLE DEVIATION
≤5 m/sAVERAGE PMAX
≤3600 kgf/cm²Elements Of Round
PROJECTILE
Practice High Explosive TracerFUZE
DummyEXPLOSIVE FILLING
Inert sulfur mixturePROPELLANT
6/7 P-5BPflCARTRIDGE CASE
SteelPRIMER
KV-3-1Technical Data
LENGTH OF ROUND
288.45 – 291.84 mmWEIGHT OF ROUND
0.835 kgLENGTH OF PROJECTILE
147.5⁻¹.⁵⁵ mm (147.5⁻¹.⁵⁵)WEIGHT OF PROJECTILE
0.385 ±0.006 kgLENGTH OF CARTRIDGE CASE
165⁻¹ mmWEIGHT OF CARTRIDGE CASE
0.321 ±0.010 kgPROPELLANT CHARGE MASS
0.122 kgBURNING TIME OF TRACER
≥10 sec
