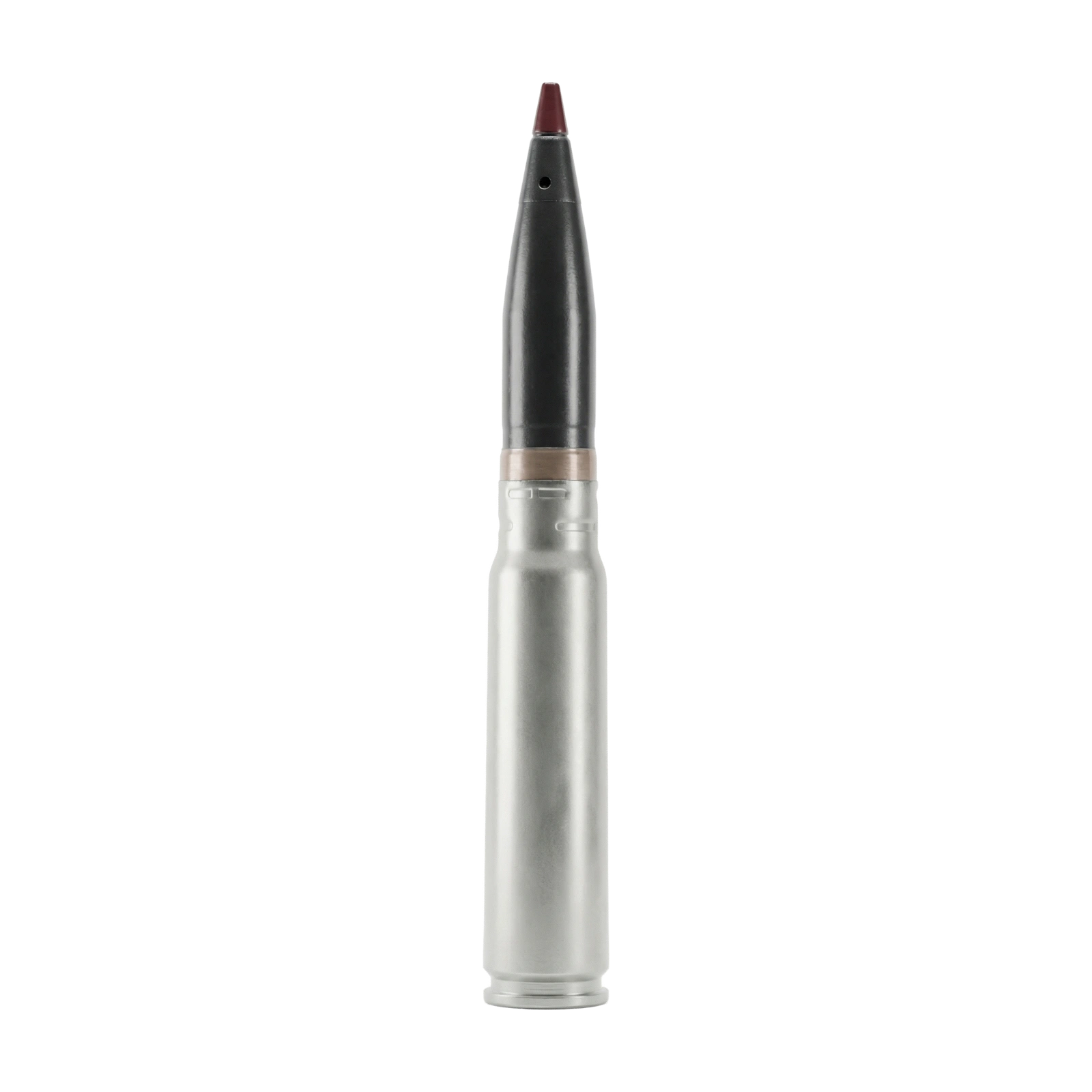

30×165 mm round
HEI projectile
DESCRIPTION
30x165 Round with Practice HEI (High Explosive Incendiary) Projectile is intended for practice firing. The projectile is inert and contains no explosive. The ammunition is safe in transport, storage and handling and ensures the reliable performance of the gun systems in all weather conditions. It is used with automatic guns 2A42, 2A38, 2A72 and modifications on infantry fighting vehicles, reconnaissance vehicles, air-defense systems, and attack helicopters.
Key Parameters
Basic Characteristics
CALIBER
30x165 mmOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
15 yearsBallistic Data
MUZZLE VELOCITY
950 – 970 m/sPROBABLE DEVIATION
≤5 m/sAVERAGE PMAX
≤3600 kgf/cm²Elements Of Round
PROJECTILE
Practice High Explosive IncendiaryFUZE
DummyEXPLOSIVE FILLING
Sulfur MixturePROPELLANT
6/7 P-5BPflCARTRIDGE CASE
SteelPRIMER
KV-3-1Technical Data
LENGTH OF ROUND
289 – 293 mmWEIGHT OF ROUND
0.842 kgWEIGHT OF PROJECTILE
0.389 ±0.0006 kgLENGTH OF CARTRIDGE CASE
165⁻¹ mmWEIGHT OF CARTRIDGE CASE
0.321 ±0.010 kgPROPELLANT CHARGE MASS
0.123 ±0.0003 kg
