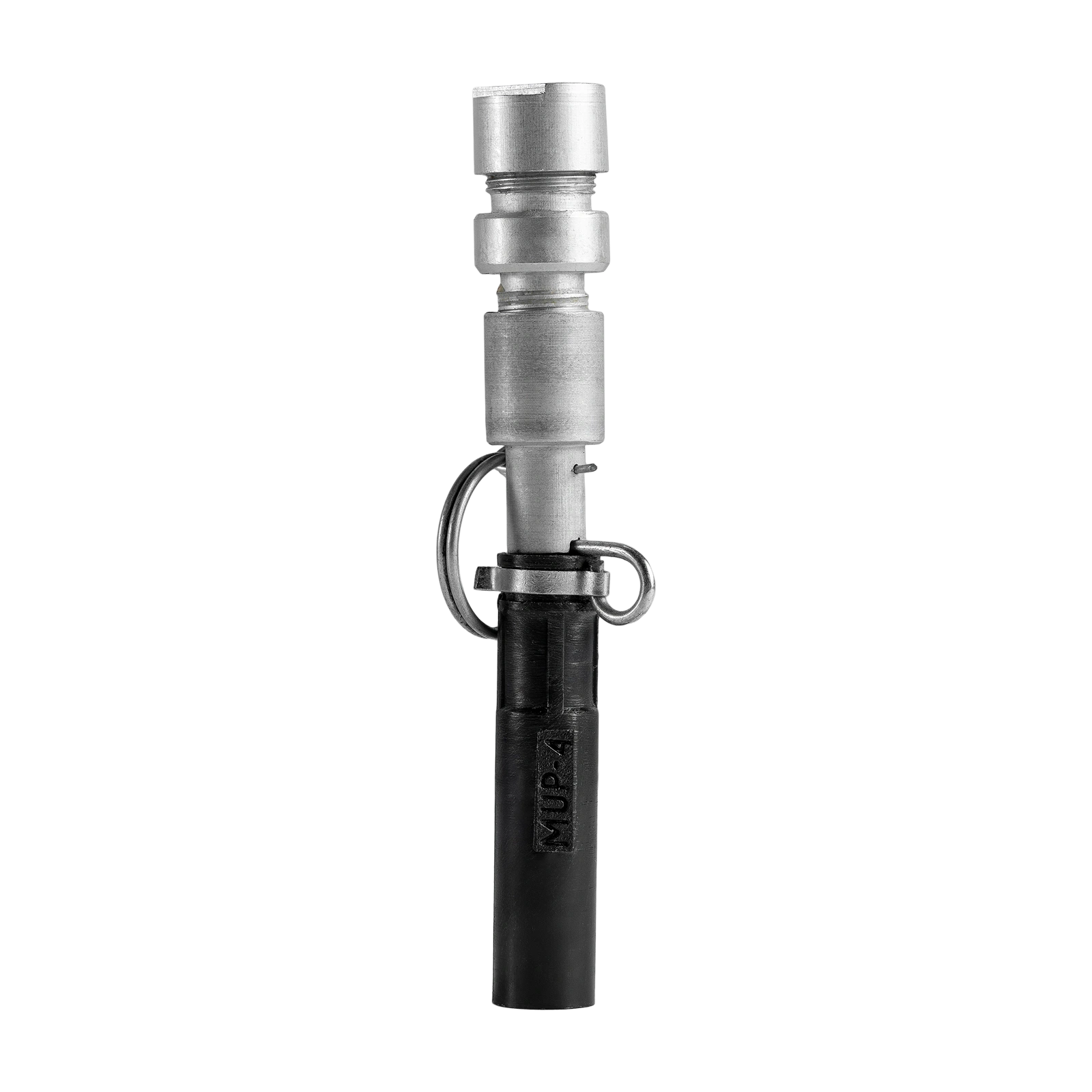

MUP-4 mine fuze
Hydromechanical time-delay fuze for APM
DESCRIPTION
MUP-4 mine fuze is an instant-action fuze with a hydromechanical time-delay mechanism, intended for use in anti-personnel mines. It is compatible with MD-2 and MD-5M type detonators, and designed for installation in various mines including OZM-72, OZM-4, POMZ-2M, PMD-6M, and PMP.
Key Parameters
WEIGHT (WITH PLASTIC DELAY UNIT)
32 gWEIGHT (WITH METAL DELAY UNIT)
38 gDIMENSIONS
114 × 26 mm (max)DELAY TIME (HYDROMECHANICAL)
1–30 minPULL FORCE (“T”-SHAPED PIN)
3.06–11.2 kgfPULL FORCE (“P”-SHAPED PIN)
2.04–2.5 kgf
