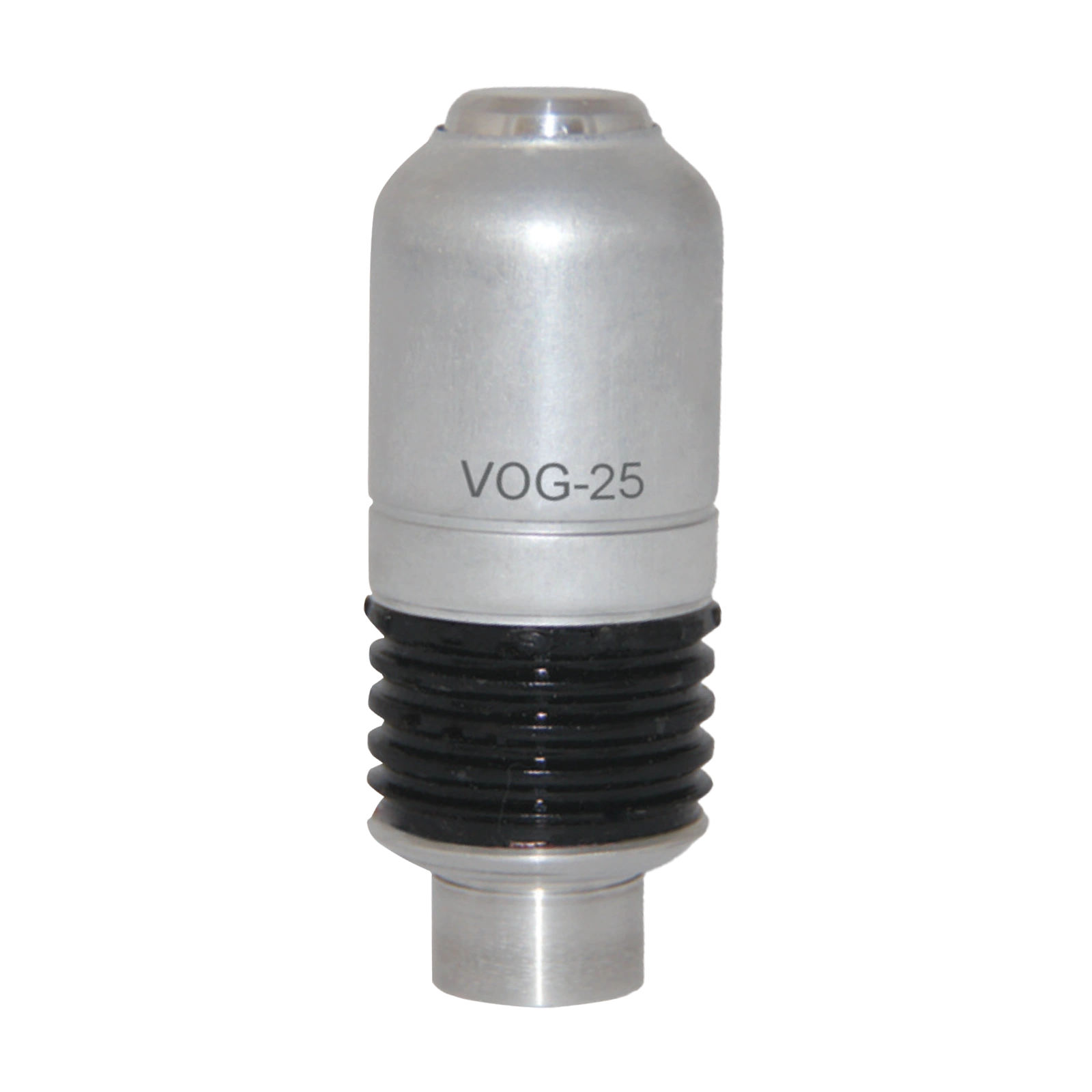

40 mm grenade
HE VOG-25
DESCRIPTION
40 mm High Explosive Grenade VOG-25 provides effective action against enemy troops in open terrain or in light shelters at distance of up to 400 m. The grenade is self-contained and fitted with a distance-armed, self-destruct fuze. It is safe in storage, handling and operation and ensures reliable performance of grenade launchers in all weather
Key Parameters
MAXIMUM FIRING RANGE
400 mEFFECTIVE BURSTING RADIUS
≥6 mOPERATIONAL TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
10 yearsBallistic Data
MUZZLE VELOCITY
76.5 m/sPROBABLE DEVIATION
1 m/sAVERAGE PRESSURE (MAX)
800 kgf/cm²Technical Data
LENGTH OF GRENADE (MAX)
102.6 mmWEIGHT OF GRENADE
0.25 kgWEIGHT OF EXPLOSIVE CHARGE
0.048 kgElements of Grenade
FUZE
VMG-K or UT MOO SPGRENADE BODY
SteelEXPLOSIVE FILLING
A-IX-1 (RDX)PROPELLANT
P-200PRIMER
KVM-3Fuze
TYPE
Point Detonating, SQ, Distance-Armed, Self-DestructARMING DISTANCE
10–40 m or 15–50 mSELF-DESTRUCTION TIME
14–19 s or 12–20 s
