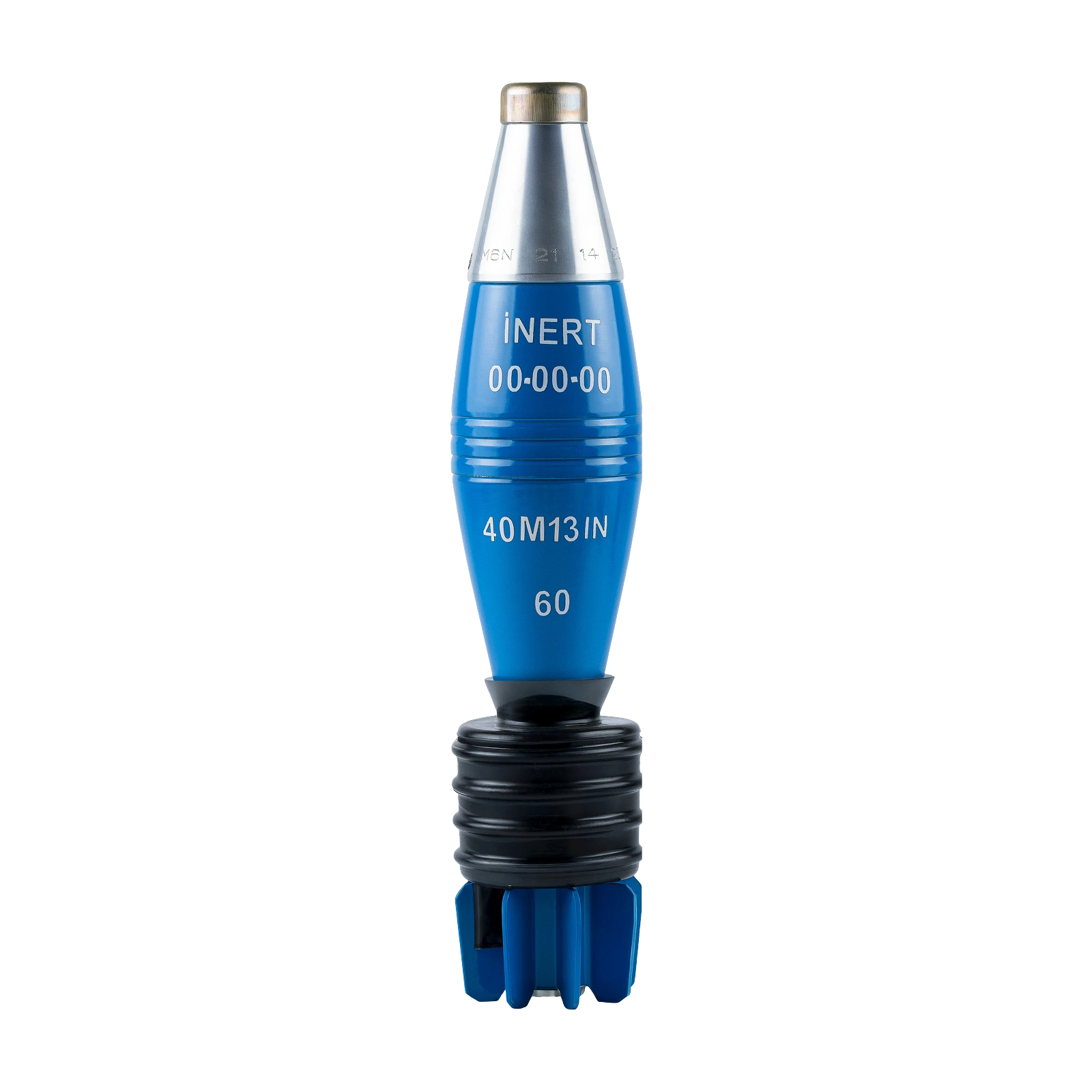

60 mm mortar bomb
Practice
DESCRIPTION
60 mm practice mortar bomb is intended for training and instructional use. The ammunition is designed for use with NATO-standard 60 mm smooth-bore mortars, including M2, M19, M224, Hirtenberger “Commando”, C-08, C-576, and 20N6M. The mortar bomb is safe in storage and handling and ensures reliable performance of the mortar system in all weather conditions.
Key Parameters
CALIBER
60 mmMAXIMUM RANGE
3200 mOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
10 yearsTechnical Data
LENGTH OF MORTAR BOMB (FUZED)
300 mmWEIGHT OF MORTAR BOMB (FUZED)
1.6 kgElements of Mortar Bomb
FUZE
DummyBODY
Cast ironNUMBER OF CHARGES
1 + 4 Increment chargesBallistic Data
MUZZLE VELOCITY (MAX)
195 ±5 m/sMAXIMUM PRESSURE
441 kg/cm²
