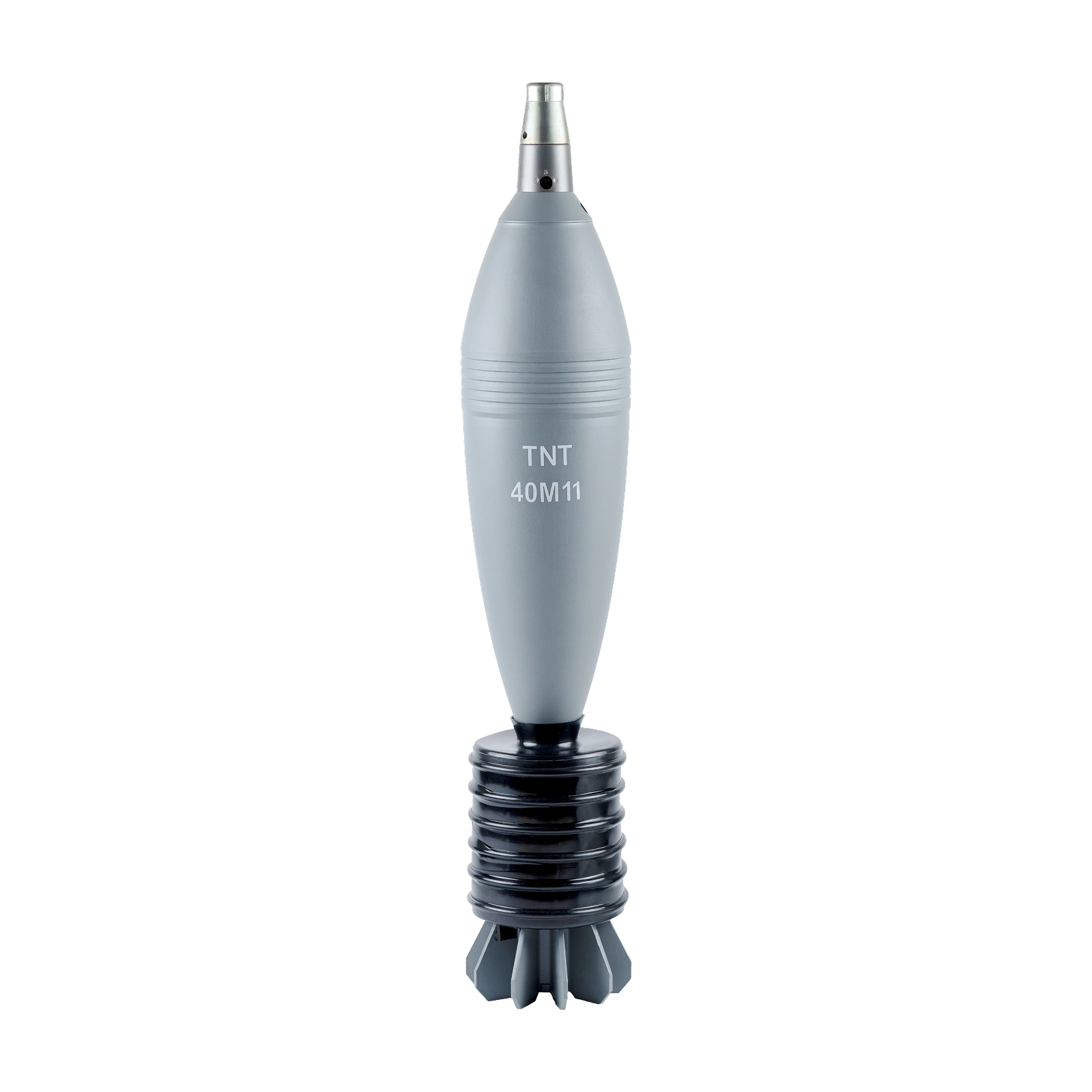

120 mm mortar bomb
High explosive
DESCRIPTION
120 mm high explosive mortar bomb is designed to defeat enemy troops, shelters, and light armored targets. Compatible with standard 120 mm smoothbore mortars, this ammunition ensures effective fragmentation impact under all environmental and operational conditions.
Key Parameters
CALIBER
120 mmMAXIMUM RANGE (INCREMENT)
5800 mMAXIMUM RANGE (LONG RANGE)
7100 mOPERATING TEMPERATURE RANGE
-50°C to +50°CSHELF LIFE
10 yearsTechnical Data
LENGTH OF MORTAR BOMB (FUZED)
673 mmWEIGHT OF MORTAR BOMB (FUZED)
16.07 ±0.050 kgWEIGHT OF EXPLOSIVE CHARGE
1.36 kgElements of Mortar Bomb
FUZE
M-12BODY
Cast ironEXPLOSIVE FILLING
TD-50NUMBER OF CHARGES
1 + 6 Increment or Long Range ChargesBallistic Data
MUZZLE VELOCITY (MAX)
272 m/sMAXIMUM PRESSURE
1030 / 1300 kgf/cm²
