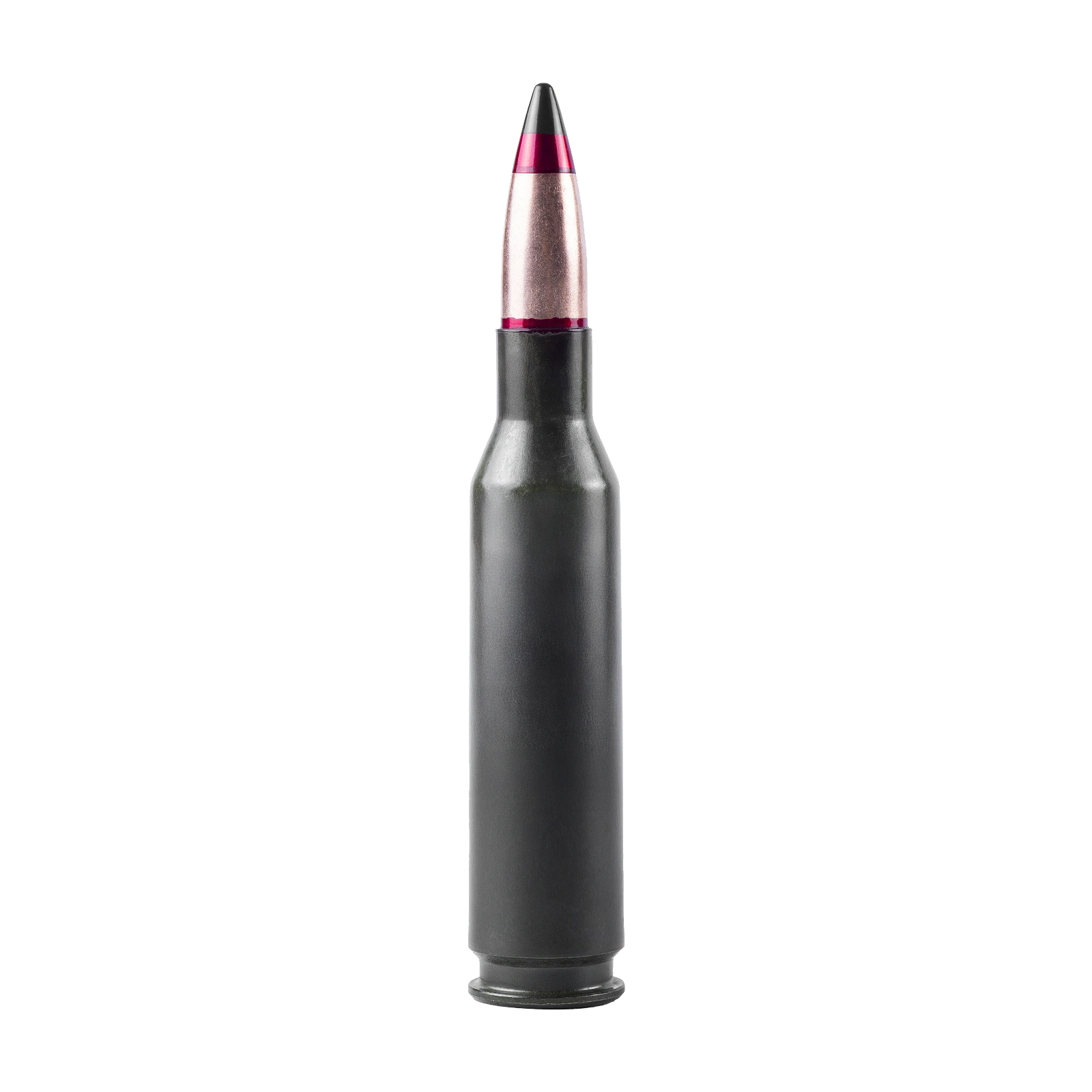

14.5×114 mm cartridge
API bullet (57-API-561S)
DESCRIPTION
The cartridge is intended to engage lightly armored vehicles, field fortifications, and low-flying aircraft. It is used in KPV and KPVT heavy machine guns, ZPU-1 to ZPU-4 anti-aircraft systems, as well as IST-14.5 anti-materiel rifles. The API bullet combines armor-piercing and incendiary effects. The bullet tip is painted red and black.
Key Parameters
CALIBER
14.5x114 mmMUZZLE VELOCITY
970-1010 m/sACCURACY (R₅₀), CM AT 100 M
≤6,7MAX MEAN GAS PRESSURE, MPA (KGF/CM²)
≤323.6 (3300)BULLET WEIGHT
63-64,8 gPOWDER CHARGE WEIGHT
31 gCARTRIDGE WEIGHT
185-195 gCARTRIDGE LENGTH
156⁻¹.⁵ mmARMOR PENETRATION AT 20° (20 MM PLATE)
100 mGRADE POWDER
5/7CASE MATERIAL
Steel
