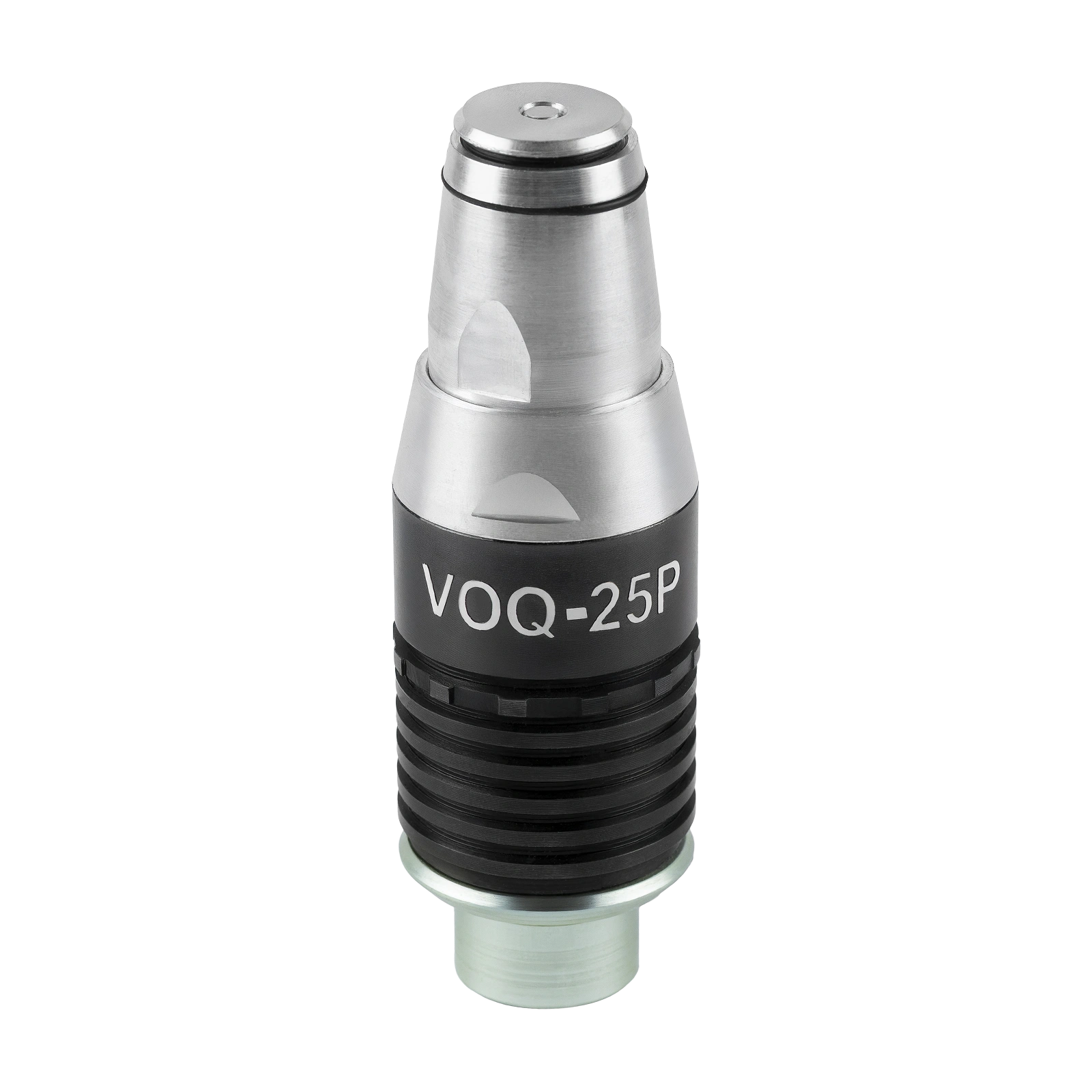

40 mm grenade
Air Burst VOG-25P
DESCRIPTION
40 mm Round with Fragmentation Bouncing Grenade VOG-25P provides effective action against enemy troops in open terrain or in light shelters at distances from 40 up to 400 m. The grenade is self-contained and equipped with a distance-armed, self-destruct fuze. It ensures safe operation, storage, and reliable performance in all weather conditions.
Key Parameters
MAXIMUM FIRING RANGE
400 mEFFECTIVE BURSTING RADIUS
≥6 mJUMP HEIGHT
0.5 – 1.5 mSHELF LIFE
10 yearsOPERATIONAL TEMPERATURE RANGE
-50°C to +50°CBallistic Data
MUZZLE VELOCITY
75 m/sPROBABLE DEVIATION
1 m/sAVERAGE PRESSURE (MAX)
78.4 MPaTechnical Data
LENGTH OF ROUND (MAX)
122 mmWEIGHT OF ROUND
0.278 kgWEIGHT OF EXPLOSIVE CHARGE
0.037 kgElements of Grenade
FUZE
VMG-P or FSD1GRENADE BODY
SteelEXPLOSIVE FILLING
A-IX-1 (RDX)PROPELLANT
P-200PRIMER
KVM-3Fuze
TYPE
Point Detonating, SQ action, Distance-Armed, Self-DestructARMING DISTANCE
10 – 40 mSELF-DESTRUCTION TIME
14 – 19 s
